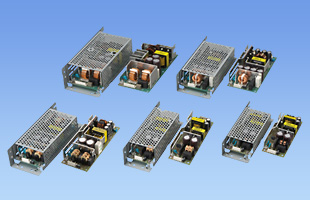

• Small and compact PCB construction
• Built-in inrush current, overcurrent and overvoltage protection circuits
LG(1) A(2) 50(3) A(4) - 5(5) - □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) 100/120V input
(5) Output voltage
(6) Optional
C: with Coating
G: Low leakage current
H: with the function to be acceptable to output peak current (only 24V)
J1: VH (J.S.T.) connector type
S: with Chassis
SN: with Chassis & cover
Y: with Potentiometer
型號 |
輸入電壓 |
輸出瓦數 |
輸出電壓/電流 |
LGA50A-3R3-Y |
1Φ AC85~132V |
33W |
3.3V 10A |
LGA50A-5 |
1Φ AC85~132V |
50W |
5V 10A |
LGA50A-12 |
1Φ AC85~132V |
51.6W |
12V 4.3A |
LGA50A-15 |
1Φ AC85~132V |
52.5W |
15V 3.5A |
LGA50A-24 |
1Φ AC85~132V |
60W |
24V 2.5A |
LGA50A-24-H |
1Φ AC85~132V |
60W |
24V 2.5(Peak 3.2)A |
LGA50A-48 |
1Φ AC85~132V |
62.4W |
48V 1.3A |
LGA75A-3R3-Y |
1Φ AC85~132V |
49.5W |
3.3V 15A |
LGA75A-5 |
1Φ AC85~132V |
75W |
5V 15A |
LGA75A-12 |
1Φ AC85~132V |
75.6W |
12V 6.3A |
LGA75A-15 |
1Φ AC85~132V |
75W |
15V 5A |
LGA75A-24 |
1Φ AC85~132V |
76.8W |
24V 3.2A |
LGA75A-24-H |
1Φ AC85~132V |
76.8W |
24V 3.2(Peak 4.2)A |
LGA75A-48 |
1Φ AC85~132V |
76.8W |
48V 1.6A |
LGA100A-3R3-Y |
1Φ AC85~132V |
66W |
3.3V 20A |
LGA100A-5-Y |
1Φ AC85~132V |
100W |
5V 20A |
LGA100A-12 |
1Φ AC85~132V |
102W |
12V 8.5A |
LGA100A-15 |
1Φ AC85~132V |
105W |
15V 7A |
LGA100A-24 |
1Φ AC85~132V |
103.2W |
24V 4.3A |
LGA100A-24-H |
1Φ AC85~132V |
103.2W |
24V 4.3(Peak 5.4)A |
LGA100A-48 |
1Φ AC85~132V |
100.8W |
48V 2.1A |
LGA150A-3R3-Y |
1Φ AC85~132V |
99W |
3.3V 30A |
LGA150A-5-Y |
1Φ AC85~132V |
150W |
5V 30A |
LGA150A-12 |
1Φ AC85~132V |
150W |
12V 12.5A |
LGA150A-15 |
1Φ AC85~132V |
150W |
15V 10A |
LGA150A-24 |
1Φ AC85~132V |
151.2W |
24V 6.3A |
LGA150A-24-H |
1Φ AC85~132V |
151.2W |
24V 6.3(Peak 7.9)A |
LGA150A-48 |
1Φ AC85~132V |
153.6W |
48V 3.2A |
LGA240A-24 |
1Φ AC85~132V |
240W |
24V 10A |
LGA240A-24-H |
1Φ AC85~132V |
240W |
24V 10(Peak 12.5)A |
