| 配置 | ||||||

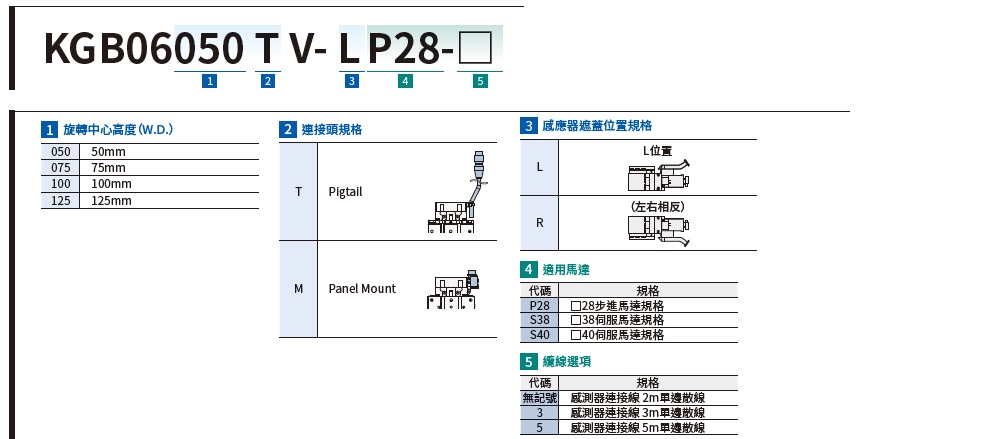

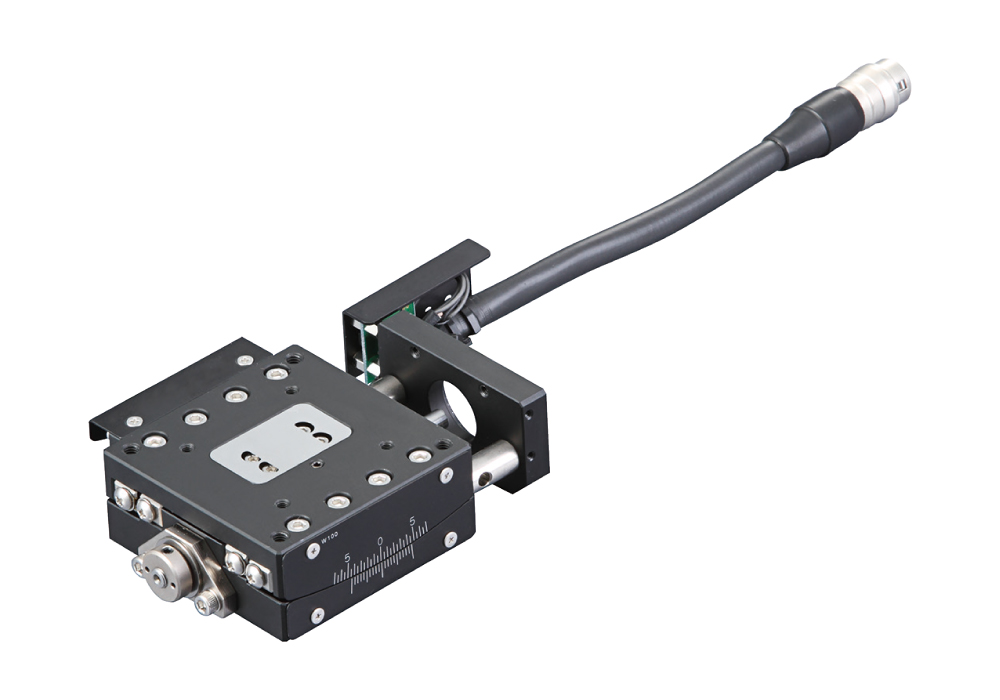

| 款型 | KGB06050MV-LP28 | KGB06075MV-LP28 | KGB06100MV-LP28 | KGB06125MV-LP28 | ||
| KGB06050MV-RP28 | KGB06075MV-RP28 | KGB06100MV-RP28 | KGB06125MV-RP28 | |||
| 機 械 規 格 |
移動量 | ±8.5∘ | ±5.5∘ | ±5∘ | ±4∘ | |
| 滑台面尺寸 | 60X60mm | |||||
| 移動結構（減速比） | 滾珠絲桿φ6 導程1 | |||||
| 導軌 | 交叉滾子導軌 | |||||
| 主材質－表面處理 | 鋁－黑耐酸鋁處理 | |||||
| 尺碼公差 | 滑台高度 | 25±0.2mm | ||||
| 旋轉中心高度 | 50±0.2mm | 75±0.2mm | 100±0.2mm | 125±0.2mm | ||
| 旋轉中心振動精度 | 0.01［mm以內］ | |||||
| 精度規格 | 分辨率/脈衝 | 0.0021∘ | 0.0014∘ | 0.0011∘ | 0.0009∘ | |
| MAX速度 | 10.5∘/sec [5kHz] | 7∘/sec [5kHz] | 5.5∘/sec [5kHz] | 4.5∘/sec [5kHz] | ||
| 反復定位精度 | ±0.001∘以内 | |||||
| 耐荷重 | 5.0kgf 【49N】 | |||||
| 力矩剛性 | 仰俯0.30 / 橫擺0.10 / 側傾0.11 ["/N．cm] | |||||
| 空轉 | 0.003° 以內 | |||||
| 感 應 器 |
極限感應器 | 有 | ||||
| 原點感應器 | 有 | |||||
| 近接原點感應器 | - | |||||
註：解析度對應之驅動部參考搭配Oriental motor的AZ系列閉回路步進馬達。
| 型號 | 反覆定位精度 [°] |
滑檯面尺寸 [mm] |
移動量 [°] |
迴轉中心高 [mm] |
耐荷重 [kgf] |
馬達/框面選項 | 3D CAD |
| KGB06050MV-LP28 | ±0.001°以內 | 60 x 60 | ±8.5° | 50 ± 0.2 | 5.0 | 步進馬達 28框 | 3D |
| KGB06050MV-LS38 | ±0.001°以內 | 60 x 60 | ±8.5° | 50 ± 0.2 | 5.0 | 伺服馬達 38框 | 3D |
| KGB06050MV-LS40 | ±0.001°以內 | 60 x 60 | ±8.5° | 50 ± 0.2 | 5.0 | 伺服馬達 40框 | 3D |
| KGB06050MV-RP28 | ±0.001°以內 | 60 x 60 | ±8.5° | 50 ± 0.2 | 5.0 | 步進馬達 28框 | 3D |
| KGB06050MV-RS38 | ±0.001°以內 | 60 x 60 | ±8.5° | 50 ± 0.2 | 5.0 | 伺服馬達 38框 | 3D |
| KGB06050MV-RS40 | ±0.001°以內 | 60 x 60 | ±8.5° | 50 ± 0.2 | 5.0 | 伺服馬達 40框 | 3D |
| KGB06075MV-LP28 | ±0.001°以內 | 60 x 60 | ±5.5° | 75 ± 0.2 | 5.0 | 步進馬達 28框 | 3D |
| KGB06075MV-LS38 | ±0.001°以內 | 60 x 60 | ±5.5° | 75 ± 0.2 | 5.0 | 伺服馬達 38框 | 3D |
| KGB06075MV-LS40 | ±0.001°以內 | 60 x 60 | ±5.5° | 75 ± 0.2 | 5.0 | 伺服馬達 40框 | 3D |
| KGB06075MV-RP28 | ±0.001°以內 | 60 x 60 | ±5.5° | 75 ± 0.2 | 5.0 | 步進馬達 28框 | 3D |
| KGB06075MV-RS38 | ±0.001°以內 | 60 x 60 | ±5.5° | 75 ± 0.2 | 5.0 | 伺服馬達 38框 | 3D |
| KGB06075MV-RS40 | ±0.001°以內 | 60 x 60 | ±5.5° | 75 ± 0.2 | 5.0 | 伺服馬達 40框 | 3D |
| KGB06100MV-LP28 | ±0.001°以內 | 60 x 60 | ±5° | 100 ± 0.2 | 5.0 | 步進馬達 28框 | 3D |
| KGB06100MV-LS38 | ±0.001°以內 | 60 x 60 | ±5° | 100 ± 0.2 | 5.0 | 伺服馬達 38框 | 3D |
| KGB06100MV-LS40 | ±0.001°以內 | 60 x 60 | ±5° | 100 ± 0.2 | 5.0 | 伺服馬達 40框 | 3D |
| KGB06100MV-RP28 | ±0.001°以內 | 60 x 60 | ±5° | 100 ± 0.2 | 5.0 | 步進馬達 28框 | 3D |
| KGB06100MV-RS38 | ±0.001°以內 | 60 x 60 | ±5° | 100 ± 0.2 | 5.0 | 伺服馬達 38框 | 3D |
| KGB06100MV-RS40 | ±0.001°以內 | 60 x 60 | ±5° | 100 ± 0.2 | 5.0 | 伺服馬達 40框 | 3D |
| KGB06125MV-LP28 | ±0.001°以內 | 60 x 60 | ±4° | 125 ± 0.2 | 5.0 | 步進馬達 28框 | 3D |
| KGB06125MV-LS38 | ±0.001°以內 | 60 x 60 | ±4° | 125 ± 0.2 | 5.0 | 伺服馬達 38框 | 3D |
| KGB06125MV-LS40 | ±0.001°以內 | 60 x 60 | ±4° | 125 ± 0.2 | 5.0 | 伺服馬達 40框 | 3D |
| KGB06125MV-RP28 | ±0.001°以內 | 60 x 60 | ±4° | 125 ± 0.2 | 5.0 | 步進馬達 28框 | 3D |
| KGB06125MV-RS38 | ±0.001°以內 | 60 x 60 | ±4° | 125 ± 0.2 | 5.0 | 伺服馬達 38框 | 3D |
| KGB06125MV-RS40 | ±0.001°以內 | 60 x 60 | ±4° | 125 ± 0.2 | 5.0 | 伺服馬達 40框 | 3D |
如需產品圖檔，請洽廣億科技服務人員，謝謝！
