• Economical design
• Wide temperature range (-20℃ to +70℃, Derating is required)
• Harmonic attenuator (Complies with IEC61000-3-2 Class A)
• Universal input (AC85~264V, Derating is required)
• Various option

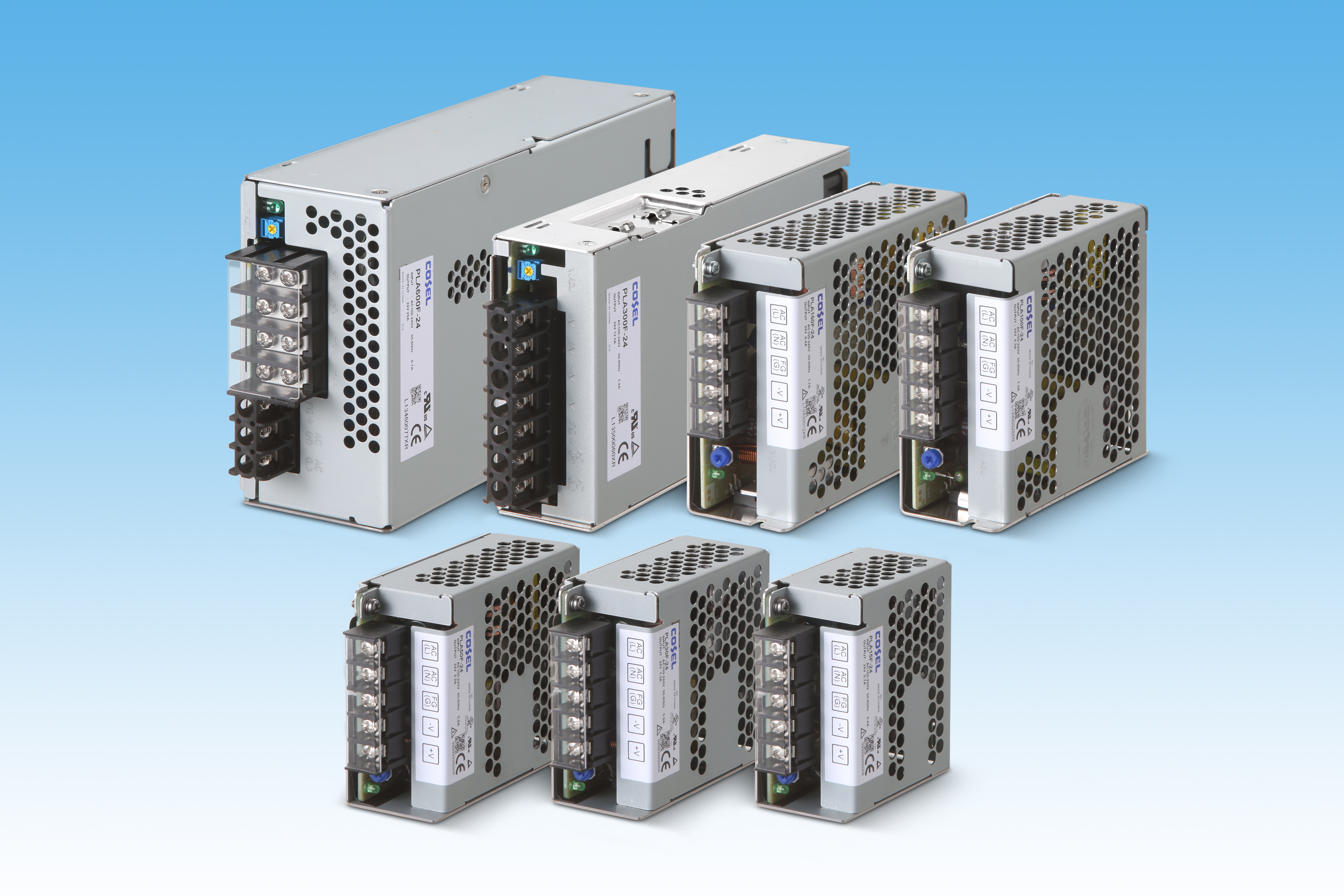

• PLA15F, PLA30F, PLA50F
Compact design 15%-20% smaller (Compared with PBA series)
Optional connector (Vertical terminal block, Header connector)
• PLA100F, PLA150F
Compact design 25% smaller (Compared with PBA series)
Low power consumption (1.5W typ AC240Vin at no load)
Optional connector (Vertical terminal block, Header connector)
• PLA300F, PLA600F
Low profile design (PLA300F:1U size, PLA600F:2U size)
Screw hold type terminal block
Complies with SEMI F-47 (Option-U: Refer to instruction manual)
PL(1) A(2) 15(3) F(4) - □(5) - □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
C: with Coating
J: Connector interface
T: Vertical terminal block
N1: with DIN rail
|
型號 |
輸入電壓 |
輸出瓦數 |
輸出電壓／電流 |
|
PLA15F-5 |
1Φ AC85～264V |
15.0W ACIN 115V - 264V |
5V 3A |
|
PLA15F-12 |
1Φ AC85～264V |
15.6W ACIN 115V - 264V |
12V 1.3A |
|
PLA15F-15 |
1Φ AC85～264V |
15.0W ACIN 115V - 264V |
15V 1A |
|
PLA15F-24 |
1Φ AC85～264V |
16.8W ACIN 115V - 264V |
24V 0.7A |
|
PLA30F-5 |
1Φ AC85～264V |
30.0W ACIN 115V - 264V |
5V 6A |
|
PLA30F-12 |
1Φ AC85～264V |
30.0W ACIN 115V - 264V |
12V 2.5A |
|
PLA30F-15 |
1Φ AC85～264V |
30.0W ACIN 115V - 264V |
15V 2A |
|
PLA30F-24 |
1Φ AC85～264V |
31.2W ACIN 115V - 264V |
24V 1.3A |
|
PLA50F-5 |
1Φ AC85～264V |
40.0W ACIN 115V - 264V |
5V 8A |
|
PLA50F-12 |
1Φ AC85～264V |
51.6W ACIN 115V - 264V |
12V 4.3A |
|
PLA50F-15 |
1Φ AC85～264V |
52.5W ACIN 115V - 264V |
15V 3.5A |
|
PLA50F-24 |
1Φ AC85～264V |
52.8W ACIN 115V - 264V |
24V 2.2A |
|
PLA100F-12 |
1Φ AC85～264V |
100.8W ACIN 115V - 264V |
12V 8.4A |
|
PLA100F-15 |
1Φ AC85～264V |
100.5W ACIN 115V - 264V |
15V 6.7A |
|
PLA100F-24 |
1Φ AC85～264V |
103.2W ACIN 115V - 264V |
24V 4.3A |
|
PLA100F-36 |
1Φ AC85～264V |
100.8W ACIN 115V - 264V |
36V 2.8A |
|
PLA100F-48 |
1Φ AC85～264V |
100.8W ACIN 115V - 264V |
48V 2.1A |
|
PLA150F-12 |
1Φ AC85～264V |
150W ACIN 115V - 264V |
12V 12.5A |
|
PLA150F-15 |
1Φ AC85～264V |
150W ACIN 115V - 264V |
15V 10A |
|
PLA150F-24 |
1Φ AC85～264V |
153.6W ACIN 115V - 264V |
24V 6.4A |
|
PLA150F-36 |
1Φ AC85～264V |
151.2W ACIN 115V - 264V |
36V 4.2A |
|
PLA150F-48 |
1Φ AC85～264V |
153.6W ACIN 115V - 264V |
48V 3.2A |
|
PLA300F-5 |
1Φ AC85～264V |
250W ACIN 115V - 264V |
5V 50A |
|
PLA300F-12 |
1Φ AC85～264V |
300W ACIN 115V - 264V |
12V 25A |
|
PLA300F-15 |
1Φ AC85～264V |
300W ACIN 115V - 264V |
15V 20A |
|
PLA300F-24 |
1Φ AC85～264V |
300W ACIN 115V - 264V |
24V 12.5A |
|
PLA300F-36 |
1Φ AC85～264V |
302.4W ACIN 115V - 264V |
36V 8.4A |
|
PLA300F-48 |
1Φ AC85～264V |
302.4W ACIN 115V - 264V |
48V 6.3A |
|
PLA600F-12 |
1Φ AC85～264V |
600W ACIN 115V - 264V |
12V 50A |
|
PLA600F-15 |
1Φ AC85～264V |
600W ACIN 115V - 264V |
15V 40A |
|
PLA600F-24 |
1Φ AC85～264V |
600W ACIN 115V - 264V |
24V 25A |
|
PLA600F-36 |
1Φ AC85～264V |
601.2W ACIN 115V - 264V |
36V 16.7A |
|
PLA600F-48 |
1Φ AC85～264V |
600W ACIN 115V - 264V |
48V 12.5A |
如需產品圖檔，請洽廣億科技服務人員，謝謝！
