• Economical design
• Wide temperature range (-20℃ to +70℃, Derating is required)
• Harmonic attenuator (Complies with IEC61000-3-2 Class A)
• Universal input (AC85-264V, Derating is required)
• Various option
• Compact design 25% smaller (Compared with PBA series)
• Low power consumption (1.5W typ AC240Vin at no load)
• Optional connector (Vertical terminal block, Header connector)
• Low profile design

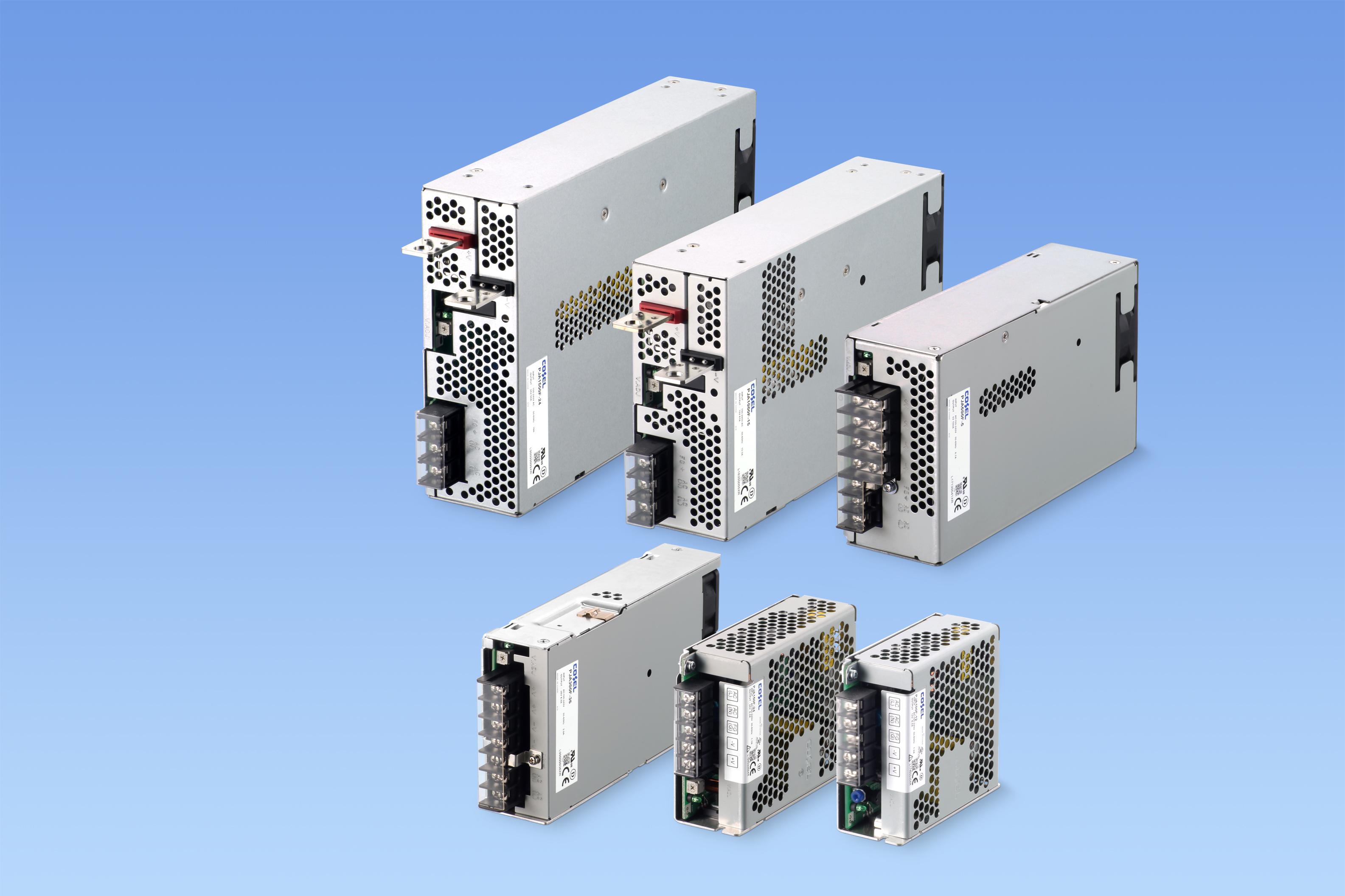

PJA100F, 150F, 300F(1U size)
PJA600F , 1000F, 1500F(2U size)
• Complies with SEMI F-47
PJ(1) A(2) 100(3) F(4) - □(5) - □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
C: with Coating
R: with Remote ON/OFF (Required external power source)
J: Connector interface
T: Vertical terminal block
N2: with DIN rail
|
型號 |
輸入電壓 |
輸出瓦數 |
輸出電壓／電流 |
|
PJA100F-12 |
1Φ AC85～264V |
100.8W ACIN 115V - 264V |
12V 8.4A |
|
PJA100F-15 |
1Φ AC85～264V |
100.5W ACIN 115V - 264V |
15V 6.7A |
|
PJA100F-24 |
1Φ AC85～264V |
103.2W ACIN 115V - 264V |
24V 4.3A |
|
PJA100F-36 |
1Φ AC85～264V |
100.8W ACIN 115V - 264V |
36V 2.8A |
|
PJA100F-48 |
1Φ AC85～264V |
100.8W ACIN 115V - 264V |
48V 2.1A |
|
PJA150F-12 |
1Φ AC85～264V |
150W ACIN 115V - 264V |
12V 12.5A |
|
PJA150F-15 |
1Φ AC85～264V |
150W ACIN 115V - 264V |
15V 10A |
|
PJA150F-24 |
1Φ AC85～264V |
153.6W ACIN 115V - 264V |
24V 6.4A |
|
PJA150F-36 |
1Φ AC85～264V |
151.2W ACIN 115V - 264V |
36V 4.2A |
|
PJA150F-48 |
1Φ AC85～264V |
153.6W ACIN 115V - 264V |
48V 3.2A |
|
PJA300F-5 |
1Φ AC85～264V |
250W ACIN100V - 264V |
5V 50A |
|
PJA300F-12 |
1Φ AC85～264V |
300W ACIN100V - 264V |
12V 25A |
|
PJA300F-15 |
1Φ AC85～264V |
300W ACIN100V - 264V |
15V 20A |
|
PJA300F-24 |
1Φ AC85～264V |
300W ACIN100V - 264V |
24V 12.5A |
|
PJA300F-36 |
1Φ AC85～264V |
302.4W ACIN100V - 264V |
36V 8.4A |
|
PJA300F-48 |
1Φ AC85～264V |
302.4W ACIN100V - 264V |
48V 6.3A |
|
PJA600F-5 |
1Φ AC85～264V |
500W ACIN 100V - 264V |
5V 100A |
|
PJA600F-12 |
1Φ AC85～264V |
600W ACIN 100V - 264V |
12V 50A |
|
PJA600F-15 |
1Φ AC85～264V |
600W ACIN 100V - 264V |
15V 40A |
|
PJA600F-24 |
1Φ AC85～264V |
600W ACIN 100V - 264V |
24V 25A |
|
PJA600F-36 |
1Φ AC85～264V |
601.2W ACIN 100V - 264V |
36V 16.7A |
|
PJA600F-48 |
1Φ AC85～264V |
600W ACIN 100V - 264V |
48V 12.5A |
|
PJA1000F-12 |
1Φ AC85～264V |
1008W ACIN115V - 264V |
12V 84A |
|
PJA1000F-15 |
1Φ AC85～264V |
1005W ACIN115V - 264V |
15V 67A |
|
PJA1000F-24 |
1Φ AC85～264V |
1008W ACIN115V - 264V |
24V 42A |
|
PJA1000F-36 |
1Φ AC85～264V |
1008W ACIN115V - 264V |
36V 28A |
|
PJA1000F-48 |
1Φ AC85～264V |
1008W ACIN115V - 264V |
48V 21A |
|
PJA1500F-12 |
1Φ AC85～264V |
1500W ACIN115V - 264V |
12V 125A |
|
PJA1500F-15 |
1Φ AC85～264V |
1500W ACIN115V - 264V |
15V 100A |
|
PJA1500F-24 |
1Φ AC85～264V |
1536W ACIN115V - 264V |
24V 64A |
|
PJA1500F-36 |
1Φ AC85～264V |
1512W ACIN115V - 264V |
36V 42A |
|
PJA1500F-48 |
1Φ AC85～264V |
1536W ACIN115V - 264V |
48V 32A |
如需產品圖檔，請洽廣億科技服務人員，謝謝！
