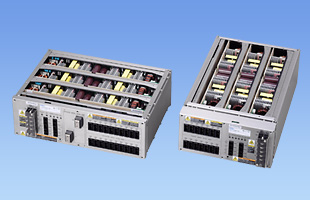

• High power, AC-DC front end power supply
• Three-phase input (AC160 - 264V 3Φ)
• High efficiency (90%) , High power factor (0.99)
• Harmonic attenuator (Complies with IEC61000-3-12)
• Complies with SEMI F47
• Wide output voltage adjustable range approximately 0 to 52.8V (Optional)
• Constant current regulation provided with additional external components (Optional)
• Parallel operation and Parallel redundancy operation (SCHA10000T)
• System ON/OFF (Remote ON/OFF)
• Alarms
• Output Voltage Monitor
• Parallel Control (Start in/out)
• Remote Signal ON/OFF

SC⁽¹⁾  H⁽²⁾  A⁽³⁾  10000⁽⁴⁾  T⁽⁵⁾  -  48⁽⁶⁾  -  □⁽⁷⁾

(1) Series name
(2) External form
  H: Wide front interface
  D: Compact front interface
(3) Single output
(4) Output wattage
(5) Three-phase input
(6) Output voltage
(7) Optional
