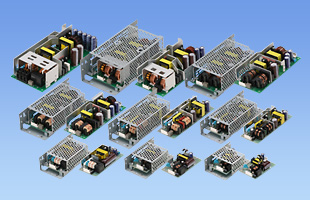

• Small and compact PCB construction
• Built-in inrush current, overcurrent and overvoltage protection circuits
• Harmonic attenuator (Complies with IEC61000-3-2)
• Universal input (AC85-264V)
• Power factor correction (LFA50F-300F)
• Built-in reducing standby power circuit (LFA10F, 15F)
LF(1) A(2) 15(3) F(4) - □(5) - □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
C: with Coating
G: Low leakage current
J1: VH (J.S.T.) connector type
S: with Chassis
SN: with Chassis & cover
Y: with Potentiometer
Specification is changed at option, refer to Instruction Manual.
|
型號 |
輸入電壓 |
輸出瓦數 |
輸出電壓／電流 |
|
LFA10F-3R3-Y |
1Φ AC85～264V |
6.6W |
3.3V 2A |
|
LFA10F-5 |
1Φ AC85～264V |
10W |
5V 2A |
|
LFA10F-12 |
1Φ AC85～264V |
10.8W |
12V 0.9A |
|
LFA10F-15 |
1Φ AC85～264V |
10.5W |
15V 0.7A |
|
LFA10F-24 |
1Φ AC85～264V |
12W |
24V 0.5A |
|
LFA15F-3R3-Y |
1Φ AC85～264V |
9.9W |
3.3V 3A |
|
LFA15F-5 |
1Φ AC85～264V |
15W |
5V 3A |
|
LFA15F-12 |
1Φ AC85～264V |
15.6W |
12V 1.3A |
|
LFA15F-15 |
1Φ AC85～264V |
15W |
15V 1A |
|
LFA15F-24 |
1Φ AC85～264V |
16.8W |
24V 0.7A |
|
LFA30F-3R3-Y |
1Φ AC85～264V |
19.8W |
3.3V 6A |
|
LFA30F-5 |
1Φ AC85～264V |
30.0W |
5V 6A |
|
LFA30F-12 |
1Φ AC85～264V |
30.0W |
12V 2.5A |
|
LFA30F-15 |
1Φ AC85～264V |
30.0W |
15V 2A |
|
LFA30F-24 |
1Φ AC85～264V |
31.2W |
24V 1.3A |
|
LFA50F-3R3-Y |
1Φ AC85～264V |
33W |
3.3V 10A |
|
LFA50F-5 |
1Φ AC85～264V |
50W |
5V 10A |
|
LFA50F-12 |
1Φ AC85～264V |
51.6W |
12V 4.3A |
|
LFA50F-15 |
1Φ AC85～264V |
52.5W |
15V 3.5A |
|
LFA50F-24 |
1Φ AC85～264V |
50.4W |
24V 2.1A |
|
LFA50F-36 |
1Φ AC85～264V |
50.4W |
36V 1.4A |
|
LFA50F-48 |
1Φ AC85～264V |
52.8W |
48V 1.1A |
|
LFA75F-3R3-Y |
1Φ AC85～264V |
49.5W |
3.3V 15A |
|
LFA75F-5 |
1Φ AC85～264V |
75W |
5V 15A |
|
LFA75F-12 |
1Φ AC85～264V |
75.6W |
12V 6.3A |
|
LFA75F-15 |
1Φ AC85～264V |
75W |
15V 5A |
|
LFA75F-24 |
1Φ AC85～264V |
76.8W |
24V 3.2A |
|
LFA75F-36 |
1Φ AC85～264V |
75.6W |
36V 2.1A |
|
LFA75F-48 |
1Φ AC85～264V |
76.8W |
48V 1.6A |
|
LFA100F-3R3-Y |
1Φ AC85～264V |
66W |
3.3V 20A |
|
LFA100F-5-Y |
1Φ AC85～264V |
100W |
5V 20A |
|
LFA100F-12 |
1Φ AC85～264V |
102W |
12V 8.5A |
|
LFA100F-15 |
1Φ AC85～264V |
100.5W |
15V 6.7A |
|
LFA100F-24 |
1Φ AC85～264V |
103.2W |
24V 4.3A |
|
LFA100F-24-H |
1Φ AC85～264V |
103.2W (129.6W) |
24V 4.3A (Peak: 5.4A) |
|
LFA100F-36 |
1Φ AC85～264V |
100.8W |
36V 2.8A |
|
LFA100F-48 |
1Φ AC85～264V |
100.8W |
48V 2.1A |
|
LFA150F-3R3-Y |
1Φ AC85～264V |
99W |
3.3V 30A |
|
LFA150F-5-Y |
1Φ AC85～264V |
150W |
5V 30A |
|
LFA150F-12 |
1Φ AC85～264V |
150W |
12V 12.5A |
|
LFA150F-15 |
1Φ AC85～264V |
150W |
15V 10A |
|
LFA150F-24 |
1Φ AC85～264V |
151.2W |
24V 6.3A |
|
LFA150F-24-H |
1Φ AC85～264V |
151.2W (189.6W) |
24V 6.3A (Peak: 7.9A) |
|
LFA150F-36 |
1Φ AC85～264V |
151.2W |
36V 4.2A |
|
LFA150F-48 |
1Φ AC85～264V |
153.6W |
48V 3.2A |
|
LFA240F-24 |
1Φ AC85～264V |
240W |
24V 10A |
|
LFA240F-24-H |
1Φ AC85～264V |
240W (300W) |
24V 10A (Peak: 12.5A) |
|
LFA240F-36 |
1Φ AC85～264V |
241.2W |
36V 6.7A |
|
LFA240F-48 |
1Φ AC85～264V |
240W |
48V 5A |
|
LFA300F-3R3-TY |
1Φ AC85～264V |
198W |
3.3V 40A Convection Cooling |
|
3.3V 60A Forced Air Cooling |
|||
|
LFA300F-5-TY |
1Φ AC85～264V |
300W |
5V 40A Convection Cooling |
|
5V 60A Forced Air Cooling |
|||
|
LFA300F-12-TY |
1Φ AC85～264V |
324W |
12V 17A Convection Cooling |
|
12V 27A Forced Air Cooling |
|||
|
LFA300F-15-TY |
1Φ AC85～264V |
330W |
15V 14A Convection Cooling |
|
15V 22A Forced Air Cooling |
|||
|
LFA300F-24-TY |
1Φ AC85～264V |
336W |
24V 12.5A Convection Cooling |
|
24V 14A Forced Air Cooling |
|||
|
LFA300F-24-HTY |
1Φ AC85～264V |
336W (456W) |
24V 12.5A (Peak: 19A) Convection Cooling |
|
24V 14A (Peak: 19A) Forced Air Cooling |
|||
|
LFA300F-30-TY |
1Φ AC85～264V |
330W |
30V 10A Convection Cooling |
|
30V 11A Forced Air Cooling |
|||
|
LFA300F-36-TY |
1Φ AC85～264V |
338.4W |
36V 8.4A Convection Cooling |
|
36V 9.4A Forced Air Cooling |
|||
|
LFA300F-48-TY |
1Φ AC85～264V |
336W |
48V 6.3A Convection Cooling |
|
48V 7A Forced Air Cooling |
