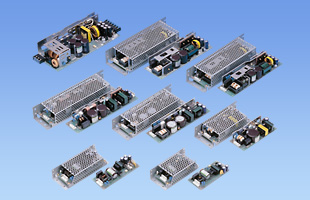

• Rugged PCB type (CEM3)
• Input range
LDA10 - 75F (AC85 - 264V)
LDA100 - 300W (AC85 - 132V/AC170 - 264V)
Autoranging input
• Built-in inrush current limiting, overcurrent and overvoltage protection circuits
LDA(1) 15(2) F(3) - 5(4) - □(5)
(1) Series name
(2) Output wattage
(3) Universal input
(4) Output voltage
(5) Optional *
C: with Coating
G: Low leakage current
S: with Chassis
SN: with Chassis & cover
Y: with Potentiometer
*Please contact us about safety approvals for the model with option.
|
型號 |
輸入電壓 |
輸出瓦數 |
輸出電壓／電流 |
|
LDA10F-3 |
1Φ AC85～264V |
6W |
3V 2.0A |
|
LDA10F-5 |
1Φ AC85～264V |
10W |
5V 2.0A |
|
LDA10F-12 |
1Φ AC85～264V |
10.8W |
12V 0.9A |
|
LDA10F-15 |
1Φ AC85～264V |
10.5W |
15V 0.7A |
|
LDA10F-24 |
1Φ AC85～264V |
12W |
24V 0.5A |
|
LDA15F-3 |
1Φ AC85～264V |
9W |
3V 3.0A |
|
LDA15F-5 |
1Φ AC85～264V |
15W |
5V 3.0A |
|
LDA15F-12 |
1Φ AC85～264V |
15.6W |
12V 1.3A |
|
LDA15F-15 |
1Φ AC85～264V |
15W |
15V 1.0A |
|
LDA15F-24 |
1Φ AC85～264V |
16.8W |
24V 0.7A |
|
LDA30F-3 |
1Φ AC85～264V |
18W |
3V 6.0A |
|
LDA30F-5 |
1Φ AC85～264V |
30W |
5V 6.0A |
|
LDA30F-12 |
1Φ AC85～264V |
30W |
12V 2.5A |
|
LDA30F-15 |
1Φ AC85～264V |
30W |
15V 2.0A |
|
LDA30F-24 |
1Φ AC85～264V |
31.2W |
24V 1.3A |
|
LDA50F-3 |
1Φ AC85～264V |
30W |
3V 10A |
|
LDA50F-5 |
1Φ AC85～264V |
50W |
5V 10A |
|
LDA50F-9 |
1Φ AC85～264V |
50.4W |
9V 5.6A |
|
LDA50F-12 |
1Φ AC85～264V |
51.6W |
12V 4.3A |
|
LDA50F-15 |
1Φ AC85～264V |
52.5W |
15V 3.5A |
|
LDA50F-18 |
1Φ AC85～264V |
50.4W |
18V 2.8A |
|
LDA50F-24 |
1Φ AC85～264V |
50.4W |
24V 2.1A |
|
LDA50F-24-H |
1Φ AC85～264V |
50.4W |
24V 2.1A (Peak: 3A) |
|
LDA50F-24-HR |
1Φ AC85～264V |
50.4W |
24V 2.1A (Peak: 3A) |
|
LDA50F-30 |
1Φ AC85～264V |
51W |
30V 1.7A |
|
LDA75F-3 |
1Φ AC85～264V |
45W |
3V 15A |
|
LDA75F-5 |
1Φ AC85～264V |
75W |
5V 15A |
|
LDA75F-9 |
1Φ AC85～264V |
76.5W |
9V 8.5A |
|
LDA75F-12 |
1Φ AC85～264V |
75.6W |
12V 6.3A |
|
LDA75F-15 |
1Φ AC85～264V |
75W |
15V 5A |
|
LDA75F-18 |
1Φ AC85～264V |
75.6W |
18V 4.2A |
|
LDA75F-24 |
1Φ AC85～264V |
76.8W |
24V 3.2A |
|
LDA75F-24-H |
1Φ AC85～264V |
76.8W |
24V 3.2A (Peak: 4.5A) |
|
LDA75F-24-HR |
1Φ AC85～264V |
76.8W |
24V 3.2A (Peak: 4.5A) |
|
LDA75F-30 |
1Φ AC85～264V |
75W |
30V 2.5A |
|
LDA100W-3 |
1Φ AC85～132V/170～264V |
60W |
3V 20A |
|
LDA100W-5 |
1Φ AC85～132V/170～264V |
100W |
5V 20A |
|
LDA100W-9 |
1Φ AC85～132V/170～264V |
103.5W |
9V 11.5A |
|
LDA100W-12 |
1Φ AC85～132V/170～264V |
102W |
12V 8.5A |
|
LDA100W-15 |
1Φ AC85～132V/170～264V |
100.5W |
15V 6.7A |
|
LDA100W-18 |
1Φ AC85～132V/170～264V |
100.8W |
18V 5.6A |
|
LDA100W-24 |
1Φ AC85～132V/170～264V |
103.2W |
24V 4.3A |
|
LDA100W-24-H |
1Φ AC85～132V/170～264V |
103.2W |
24V 4.3A (Peak: 6.5A) |
|
LDA100W-30 |
1Φ AC85～132V/170～264V |
105W |
30V 3.5A |
|
LDA100W-48 |
1Φ AC85～132V/170～264V |
96W |
48V 2.0A |
|
LDA150W-3 |
1Φ AC85～132V/170～264V |
90W |
3V 30A |
|
LDA150W-5 |
1Φ AC85～132V/170～264V |
150W |
5V 30A |
|
LDA150W-9 |
1Φ AC85～132V/170～264V |
153W |
9V 17A |
|
LDA150W-12 |
1Φ AC85～132V/170～264V |
150W |
12V 12.5A |
|
LDA150W-15 |
1Φ AC85～132V/170～264V |
150W |
15V 10A |
|
LDA150W-18 |
1Φ AC85～132V/170～264V |
153W |
18V 8.5A |
|
LDA150W-24 |
1Φ AC85～132V/170～264V |
151.2W |
24V 6.3A |
|
LDA150W-24-H |
1Φ AC85～132V/170～264V |
151.2W |
24V 6.3A (Peak: 10A) |
|
LDA150W-30 |
1Φ AC85～132V/170～264V |
150W |
30V 5A |
|
LDA150W-48 |
1Φ AC85～132V/170～264V |
144W |
48V 3A |
|
LDA300W-3 |
1Φ AC85～132V/170～264V |
180W |
3V 60A |
|
LDA300W-5 |
1Φ AC85～132V/170～264V |
300W |
5V 60A |
|
LDA300W-9 |
1Φ AC85～132V/170～264V |
306W |
9V 34A |
|
LDA300W-12 |
1Φ AC85～132V/170～264V |
324W |
12V 27A |
|
LDA300W-15 |
1Φ AC85～132V/170～264V |
330W |
15V 22A |
|
LDA300W-18 |
1Φ AC85～132V/170～264V |
306W |
18V 17A |
|
LDA300W-24 |
1Φ AC85～132V/170～264V |
336W |
24V 14A |
|
LDA300W-30 |
1Φ AC85～132V/170～264V |
300W |
30V 10A |
|
LDA300W-48 |
1Φ AC85～132V/170～264V |
302.4W |
48V 6.3A |
