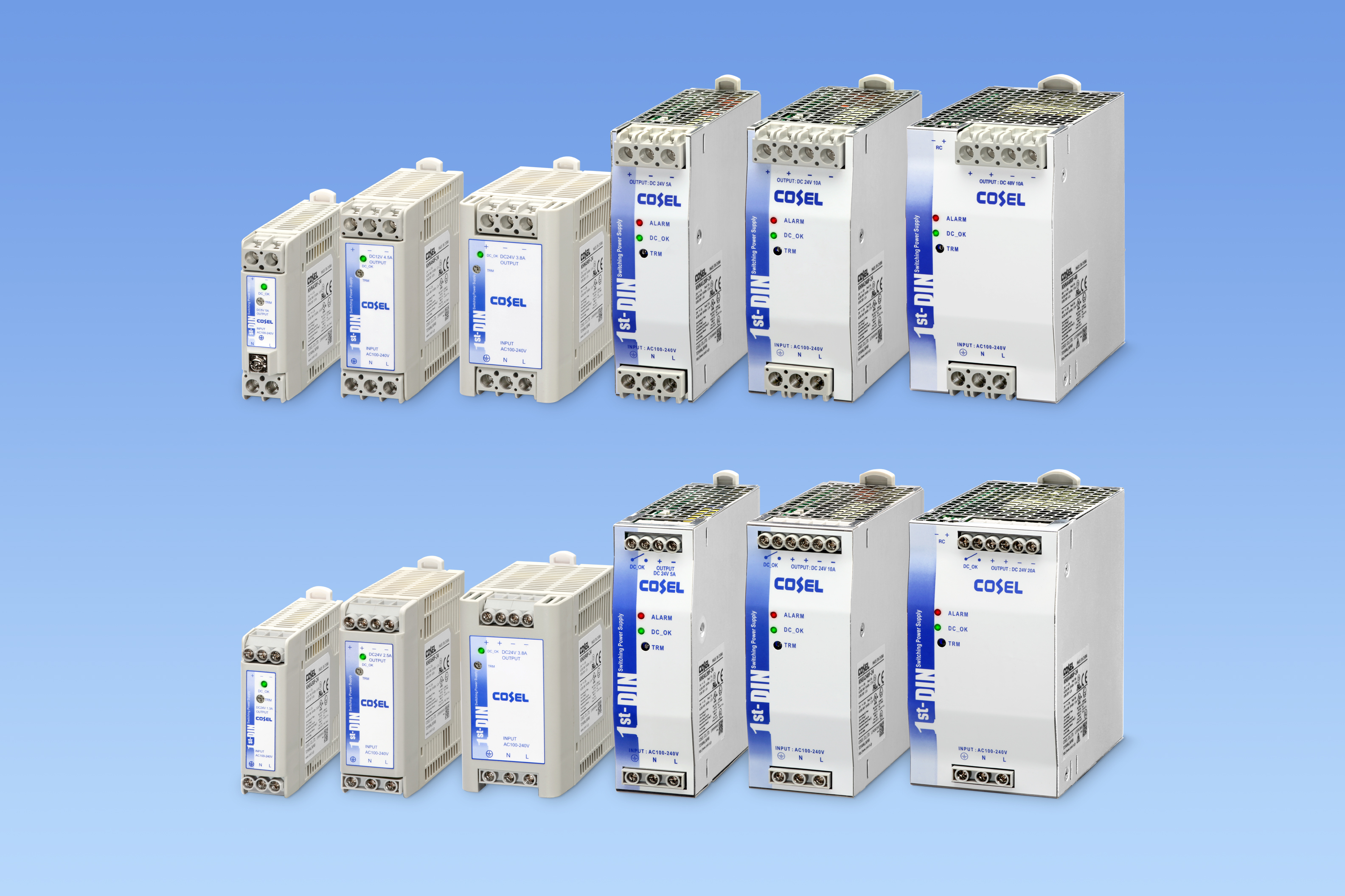

• For DIN（35mm）rail products
• Wide operating ambient temperature range
• I/O terminal has 2 types, Euro Style and Barrier Blocks Style
• Built in overcurrent protection, overvoltage protection circuits
• KHEA30F/60F/90F, KHNA30F/60F/90F
Low power consumption at no load
Complies with SEMI F-47（Derating is required）
• KHEA120F/240F/480F, KHNA120F/240F/480F
Built in remote ON/OFF
Built in signal output for confirming output voltage
Complies with SEMI F-47
KH□(1) A(2) 60(3) F(4) - □□(5) - □(6)
(1) Series name
KHE: Euro style I/O terminals
KHN: Barrier blocks style I/O terminals
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Option
C: with Coating
|
型號 |
輸入電壓 |
輸出瓦數 |
輸出電壓／電流 |
|
KHEA30F-5 |
1Φ AC85 - 264V/DC88 - 370V |
25W |
5V 5A |
|
KHEA30F-12 |
1Φ AC85 - 264V/DC88 - 370V |
27.6W |
12V 2.3A |
|
KHEA30F-24 |
1Φ AC85 - 264V/DC88 - 370V |
31.2W |
24V 1.3A |
|
KHEA60F-12 |
1Φ AC85 - 264V/DC88 - 370V |
54W |
12V 4.5A |
|
KHEA60F-24 |
1Φ AC85 - 264V/DC88 - 370V |
60W |
24V 2.5A |
|
KHEA90F-12 |
1Φ AC85 - 264V/DC88 - 250V |
81.6W |
12V 6.8A |
|
KHEA90F-24 |
1Φ AC85 - 264V/DC88 - 250V |
91.2W |
24V 3.8A |
|
KHEA120F-24 |
1Φ AC85 - 264V/DC88 - 370V |
120W |
24V 5A |
|
KHEA240F-24 |
1Φ AC85 - 264V/DC88 - 370V |
240W |
24V 10A |
|
KHEA480F-24 |
1Φ AC85 - 264V/DC88 - 350V |
480W |
24V 20A |
|
KHEA480F-48 |
1Φ AC85 - 264V/DC88 - 350V |
480W |
48V 10A |
|
KHNA30F-5 |
1Φ AC85 - 264V/DC88 - 370V |
25W |
5V 5A |
|
KHNA30F-12 |
1Φ AC85 - 264V/DC88 - 370V |
27.6W |
12V 2.3A |
|
KHNA30F-24 |
1Φ AC85 - 264V/DC88 - 370V |
31.2W |
24V 1.3A |
|
KHNA60F-12 |
1Φ AC85 - 264V/DC88 - 370V |
54W |
12V 4.5A |
|
KHNA60F-24 |
1Φ AC85 - 264V/DC88 - 370V |
60W |
24V 2.5A |
|
KHNA90F-12 |
1Φ AC85 - 264V/DC88 - 250V |
81.6W |
12V 6.8A |
|
KHNA90F-24 |
1Φ AC85 - 264V/DC88 - 250V |
91.2W |
24V 3.8A |
|
KHNA120F-24 |
1Φ AC85 - 264V/DC88 - 370V |
120W |
24V 5A |
|
KHNA240F-24 |
1Φ AC85 - 264V/DC88 - 370V |
240W |
24V 10A |
|
KHNA480F-24 |
1Φ AC85 - 264V/DC88 - 350V |
480W |
24V 20A |
|
KHNA480F-48 |
1Φ AC85 - 264V/DC88 - 350V |
480W |
48V 10A |
如需產品圖檔，請洽廣億科技服務人員，謝謝！
