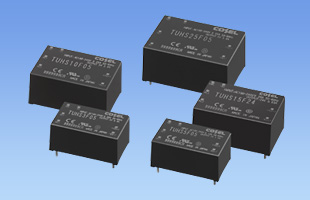

• Small size AC-DC Conveters
• High efficiency and Low standby power
• Correspondence user demand by selecting External capacitor
• Universal input voltage (AC85 - 264V, DC120 - 370V)
• Wide operating temperature range (-40 - 85℃)
• Class Ⅱ: No FG connection is necessary
TUH(1) S(2) 5(3) F(4) 05(5) - □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Universal input
(5) Output voltage
(6) Optional
|
型號 |
輸入電壓 |
輸出瓦數 |
輸出電壓／電流 |
|
TUHS3F05 |
1Φ AC170～264V or DC120-370V |
3.00W |
5.0V 0.6A |
|
TUHS3F12 |
1Φ AC170～264V or DC120-370V |
3.00W |
12.0V 0.25A |
|
TUHS3F15 |
1Φ AC170～264V or DC120-370V |
3.00W |
15.0V 0.2A |
|
TUHS3F24 |
1Φ AC170～264V or DC120-370V |
3.12W |
24.0V 0.13A |
|
TUHS5F05 |
1Φ AC170～264V or DC120-370V |
5.00W |
5.0V 1.0A |
|
TUHS5F12 |
1Φ AC170～264V or DC120-370V |
5.40W |
12.0V 0.45A |
|
TUHS5F15 |
1Φ AC170～264V or DC120-370V |
5.10W |
15.0V 0.34A |
|
TUHS5F24 |
1Φ AC170～264V or DC120-370V |
5.28W |
24.0V 0.22A |
|
TUHS10F05 |
1Φ AC170～264V or DC120-370V |
10.00W |
5.0V 2.0A |
|
TUHS10F12 |
1Φ AC170～264V or DC120-370V |
10.80W |
12.0V 0.9A |
|
TUHS10F15 |
1Φ AC170～264V or DC120-370V |
10.10W |
15.0V 0.67A |
|
TUHS10F24 |
1Φ AC170～264V or DC120-370V |
10.80W |
24.0V 0.45A |
|
TUHS15F12 |
1Φ AC170～264V or DC120-370V |
15.00W |
12.0V 1.25A |
|
TUHS15F15 |
1Φ AC170～264V or DC120-370V |
15.00W |
15.0V 1.00A |
|
TUHS15F24 |
1Φ AC170～264V or DC120-370V |
15.12W |
24.0V 0.63A |
|
TUHS25F05 |
1Φ AC170～264V or DC120-370V |
25.00W |
5.0V 5.0A |
|
TUHS25F12 |
1Φ AC170～264V or DC120-370V |
25.20W |
12.0V 2.1A |
|
TUHS25F15 |
1Φ AC170～264V or DC120-370V |
25.50W |
15.0V 1.7A |
|
TUHS25F24 |
1Φ AC170～264V or DC120-370V |
26.40W |
24.0V 1.1A |
如需產品圖檔，請洽廣億科技服務人員，謝謝！
