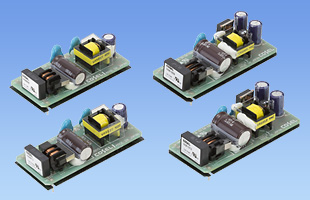

• P.C. board mount AC-DC converter
• Built-in inrush current and overcurrent protection circuits
• Small and compact size
VAA(1) 10(2) 05(3)
(1) Series name
(2) Output wattage
(3) Output voltage
|
型號 |
輸入電壓 |
輸出瓦數 |
輸出電壓／電流 |
|
VAA505 |
1Φ AC85～132V |
5.0W |
5V 1.0A |
|
VAA512 |
1Φ AC85～132V |
5.4W |
12V 0.45A |
|
VAA1005 |
1Φ AC85～132V |
10.0W |
5V 2.0A |
|
VAA1012 |
1Φ AC85～132V |
10.8W |
12V 0.9A |
如需產品圖檔，請洽廣億科技服務人員，謝謝！
