• Industry Standard

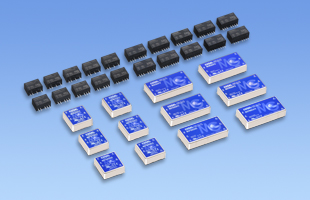

SIP6 (MGFS1R5/MGFS3) , SIP8 (MGFS6/MGFS10)
1"X1" (MGFS15) , 1"X2" (MGFS30)
• Wide input range DC9-36V/DC18-76
• High efficiency by synchronized rectification circuit (MGFS10/MGFS15/MGFS30)
• 6 sided shield (MGFS15/MGFS30)
• I/O isolation voltage DC1,500V (1 minute)
• Built-in overcurrent protection circuits (recovers automatically)
• Built-in overvoltage protection circuits (MGFS30)
• Built-in remote ON/OFF (MGFS6/MGFS10/MGFS15/MGFS30)
• Output voltage adjustability by external variable resistor (MGFS15/MGFS30)
• High reliability : not built-in aluminum and tantalum electrolytic capacitor
MGF(1) S(2) 1R5(3) 24(4) 05(5) - □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
(5) Output voltage
(6) Optional
Y2 : Output voltage adjustable (+10%, -5%)
| 型號 | 輸入電壓 | 輸出瓦數 | 輸出電壓／電流 |
| MGFS1R5243R3 | DC9 - 36V, DC18 - 76V | 1.32W | 3.3V 0.4A |
| MGFS1R52405 | DC9 - 36V, DC18 - 76V | 1.5W | 5V 0.3A |
| MGFS1R52412 | DC9 - 36V, DC18 - 76V | 1.56W | 12V 0.13A |
| MGFS1R52415 | DC9 - 36V, DC18 - 76V | 1.5W | 15V 0.1A |
| MGFS1R5483R3 | DC9 - 36V, DC18 - 76V | 1.32W | 3.3V 0.4A |
| MGFS1R54805 | DC9 - 36V, DC18 - 76V | 1.5W | 5V 0.3A |
| MGFS1R54812 | DC9 - 36V, DC18 - 76V | 1.56W | 12V 0.13A |
| MGFS1R54815 | DC9 - 36V, DC18 - 76V | 1.5W | 15V 0.1A |
| MGFS3243R3 | DC9 - 36V, DC18 - 76V | 2.64W | 3.3V 0.8A |
| MGFS32405 | DC9 - 36V, DC18 - 76V | 3W | 5V 0.6A |
| MGFS32412 | DC9 - 36V, DC18 - 76V | 3W | 12V 0.25A |
| MGFS32415 | DC9 - 36V, DC18 - 76V | 3W | 15V 0.2A |
| MGFS3483R3 | DC9 - 36V, DC18 - 76V | 2.64W | 3.3V 0.8A |
| MGFS34805 | DC9 - 36V, DC18 - 76V | 3W | 5V 0.6A |
| MGFS34812 | DC9 - 36V, DC18 - 76V | 3W | 12V 0.25A |
| MGFS34815 | DC9 - 36V, DC18 - 76V | 3W | 15V 0.2A |
| MGFS6243R3 | DC9 - 36V, DC18 - 76V | 5.28W | 3.3V 1.6A |
| MGFS62405 | DC9 - 36V, DC18 - 76V | 6W | 5V 1.2A |
| MGFS62412 | DC9 - 36V, DC18 - 76V | 6W | 12V 0.5A |
| MGFS62415 | DC9 - 36V, DC18 - 76V | 6W | 15V 0.4A |
| MGFS6483R3 | DC9 - 36V, DC18 - 76V | 5.28W | 3.3V 1.6A |
| MGFS64805 | DC9 - 36V, DC18 - 76V | 6W | 5V 1.2A |
| MGFS64812 | DC9 - 36V, DC18 - 76V | 6W | 12V 0.5A |
| MGFS64815 | DC9 - 36V, DC18 - 76V | 6W | 15V 0.4A |
| MGFS10243R3 | DC9 - 36V, DC18 - 76V | 8.58W | 3.3V 2.6A |
| MGFS102405 | DC9 - 36V, DC18 - 76V | 10W | 5V 2A |
| MGFS102412 | DC9 - 36V, DC18 - 76V | 10.8W | 12V 0.9A |
| MGFS102415 | DC9 - 36V, DC18 - 76V | 10.5W | 15V 0.7A |
| MGFS10483R3 | DC9 - 36V, DC18 - 76V | 8.58W | 3.3V 2.6A |
| MGFS104805 | DC9 - 36V, DC18 - 76V | 10W | 5V 2A |
| MGFS104812 | DC9 - 36V, DC18 - 76V | 10.8W | 12V 0.9A |
| MGFS104815 | DC9 - 36V, DC18 - 76V | 10.5W | 15V 0.7A |
| MGFS15243R3 | DC9 - 36V, DC18 - 76V | 13.2W | 3.3V 4A |
| MGFS152405 | DC9 - 36V, DC18 - 76V | 15W | 5V 3A |
| MGFS152412 | DC9 - 36V, DC18 - 76V | 15.6W | 12V 1.3A |
| MGFS152415 | DC9 - 36V, DC18 - 76V | 15W | 15V 1A |
| MGFS15483R3 | DC9 - 36V, DC18 - 76V | 13.2W | 3.3V 4A |
| MGFS154805 | DC9 - 36V, DC18 - 76V | 15W | 5V 3A |
| MGFS154812 | DC9 - 36V, DC18 - 76V | 15.6W | 12V 1.3A |
| MGFS154815 | DC9 - 36V, DC18 - 76V | 15W | 15V 1A |
| MGFS30243R3 | DC9 - 36V, DC18 - 76V | 24.75W | 3.3V 7.5A |
| MGFS302405 | DC9 - 36V, DC18 - 76V | 30W | 5V 6A |
| MGFS302412 | DC9 - 36V, DC18 - 76V | 30W | 12V 2.5A |
| MGFS302415 | DC9 - 36V, DC18 - 76V | 30W | 15V 2A |
| MGFS30483R3 | DC9 - 36V, DC18 - 76V | 24.75W | 3.3V 7.5A |
| MGFS304805 | DC9 - 36V, DC18 - 76V | 30W | 5V 6A |
| MGFS304812 | DC9 - 36V, DC18 - 76V | 30W | 12V 2.5A |
| MGFS304815 | DC9 - 36V, DC18 - 76V | 30W | 15V 2A |
| MGFS40053R3 | DC4.5-13V/DC9-36V/DC18-76V | 26.4W | 3.3V 8A |
| MGFS400505 | DC4.5-13V/DC9-36V/DC18-76V | 30W | 5V 6A |
| MGFS400512 | DC4.5-13V/DC9-36V/DC18-76V | 30W | 12V 2.5A |
| MGFS400515 | DC4.5-13V/DC9-36V/DC18-76V | 30W | 15V 2A |
| MGFS40243R3 | DC4.5-13V/DC9-36V/DC18-76V | 33W | 3.3V 10A |
| MGFS402405 | DC4.5-13V/DC9-36V/DC18-76V | 40W | 5V 8A |
| MGFS402412 | DC4.5-13V/DC9-36V/DC18-76V | 40.8W | 12V 3.4A |
| MGFS402415 | DC4.5-13V/DC9-36V/DC18-76V | 40.5W | 15V 2.7A |
| MGFS40483R3 | DC4.5-13V/DC9-36V/DC18-76V | 33W | 3.3V 10A |
| MGFS404805 | DC4.5-13V/DC9-36V/DC18-76V | 40W | 5V 8A |
| MGFS404812 | DC4.5-13V/DC9-36V/DC18-76V | 40.8W | 12V 3.4A |
| MGFS404815 | DC4.5-13V/DC9-36V/DC18-76V | 40.5W | 15V 2.7A |
| MGFS80243R3 | DC9 - 36V, DC18 - 76V | 59.4W | 3.3V 18A |
| MGFS802405 | DC9 - 36V, DC18 - 76V | 80W | 5V 16A |
| MGFS802412 | DC9 - 36V, DC18 - 76V | 80.4W | 12V 6.7A |
| MGFS802415 | DC9 - 36V, DC18 - 76V | 81W | 15V 5.4A |
| MGFS80483R3 | DC9 - 36V, DC18 - 76V | 59.4W | 3.3V 18A |
| MGFS804805 | DC9 - 36V, DC18 - 76V | 80W | 5V 16A |
| MGFS804812 | DC9 - 36V, DC18 - 76V | 80.4W | 12V 6.7A |
| MGFS804815 | DC9 - 36V, DC18 - 76V | 81W | 15V 5.4A |
如需產品圖檔，請洽廣億科技服務人員，謝謝！
