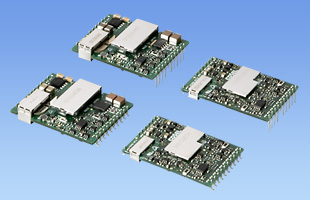

• SMD mounting type and through-hole mounting type
• High efficiency (synchronous rectifier circuit)
• Parallel operation is possible
• Built-in overcurrent, overvoltage and lowvoltage circuits
• Built-in remote ON/OFF, alarm
• High reliability: not built-in aluminum and tantalum electrolytic capacitor
SF(1) S(2) 10(3) 48(4) 3R3(5) B(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
48: DC36 - 76V
(5) Output voltage
(6) Mounting type
(Soldering process)
B: SMD (Pb-free solder)
C: DIP (Pb-free solder)
|
型號 |
輸入電壓 |
輸出瓦數 |
輸出電壓／電流 |
|
SFS10481R2 |
DC18-36V/DC36-76V |
4.2W |
1.2V 3.5A |
|
SFS10481R5 |
DC18-36V/DC36-76V |
5.25W |
1.5V 3.5A |
|
SFS10481R8 |
DC18-36V/DC36-76V |
5.4W |
1.8V 3.0A |
|
SFS10482R5 |
DC18-36V/DC36-76V |
7.5W |
2.5V 3.0A |
|
SFS10483R3 |
DC18-36V/DC36-76V |
9.9W |
3.3V 3.0A |
|
SFS104805 |
DC18-36V/DC36-76V |
10.0W |
5.0V 2.0A |
|
SFS104812 |
DC18-36V/DC36-76V |
10.8W |
12V 0.9A |
|
SFS104815 |
DC18-36V/DC36-76V |
10.5W |
15V 0.7A |
|
SFS15242R5 |
DC18-36V/DC36-76V |
11.25W |
2.5V 4.5A |
|
SFS15243R3 |
DC18-36V/DC36-76V |
14.85W |
3.3V 4.5A |
|
SFS152405 |
DC18-36V/DC36-76V |
15.0W |
5.0V 3.0A |
|
SFS152412 |
DC18-36V/DC36-76V |
15.0W |
12V 1.25A |
|
SFS152415 |
DC18-36V/DC36-76V |
15.0W |
15V 1.0A |
|
SFS15481R2 |
DC18-36V/DC36-76V |
6.24W |
1.2V 5.2A |
|
SFS15481R5 |
DC18-36V/DC36-76V |
7.8W |
1.5V 5.2A |
|
SFS15481R8 |
DC18-36V/DC36-76V |
8.1W |
1.8V 4.5A |
|
SFS15482R5 |
DC18-36V/DC36-76V |
11.25W |
2.5V 4.5A |
|
SFS15483R3 |
DC18-36V/DC36-76V |
14.85W |
3.3V 4.5A |
|
SFS154805 |
DC18-36V/DC36-76V |
15.0W |
5.0V 3.0A |
|
SFS154812 |
DC18-36V/DC36-76V |
15.0W |
12V 1.25A |
|
SFS154815 |
DC18-36V/DC36-76V |
15.0W |
15V 1.0A |
|
SFS20481R5 |
DC36-76V |
13.5W |
1.5V 9.0A |
|
SFS20481R8 |
DC36-76V |
14.4W |
1.8V 8.0A |
|
SFS20482R5 |
DC36-76V |
17.5W |
2.5V 7.0A |
|
SFS20483R3 |
DC36-76V |
19.8W |
3.3V 6.0A |
|
SFS204805 |
DC36-76V |
20.0W |
5.0V 4.0A |
|
SFS30242R5 |
DC18-36V/DC36-76V |
22.5W |
2.5V 9.0A |
|
SFS30243R3 |
DC18-36V/DC36-76V |
29.7W |
3.3V 9.0A |
|
SFS302405 |
DC18-36V/DC36-76V |
30.0W |
5.0V 6.0A |
|
SFS302412 |
DC18-36V/DC36-76V |
30.0W |
12V 2.5A |
|
SFS302415 |
DC18-36V/DC36-76V |
30.0W |
15V 2.0A |
|
SFS30481R2 |
DC18-36V/DC36-76V |
12.48W |
1.2V 10.4A |
|
SFS30481R5 |
DC18-36V/DC36-76V |
15.6W |
1.5V 10.4A |
|
SFS30481R8 |
DC18-36V/DC36-76V |
16.2W |
1.8V 9.0A |
|
SFS30482R5 |
DC18-36V/DC36-76V |
22.5W |
2.5V 9.0A |
|
SFS30483R3 |
DC18-36V/DC36-76V |
29.7W |
3.3V 9.0A |
|
SFS304805 |
DC18-36V/DC36-76V |
30.0W |
5.0V 6.0A |
|
SFS304810 |
DC18-36V/DC36-76V |
30.0W |
10V 3.0A |
|
SFS304812 |
DC18-36V/DC36-76V |
30.0W |
12V 2.5A |
|
SFS304815 |
DC18-36V/DC36-76V |
30.0W |
15V 2.0A |
