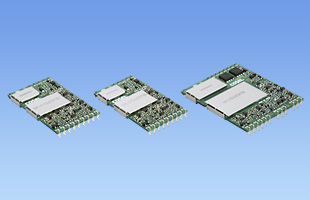

• Low profile SMD mounting type
• High efficiency (synchronous rectifier circuit)
• Parallel operation is possible
• Built-in overcurrent, overvoltage and lowvoltage circuits
• Built-in remote ON/OFF, alarm
• Built-in Power ready/Sequence control
SFL(1) S(2) 15(3) 48(4) 3R3(5) B(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) Input voltage
48: DC36 - 76V
(5) Output voltage
(6) Mounting type
B: SMD
|
型號 |
輸入電壓 |
輸出瓦數 |
輸出電壓／電流 |
|
SFLS10482R5 |
DC36-76V |
7.5W |
2.5V 3A |
|
SFLS10483R3 |
DC36-76V |
9.9W |
3.3V 3A |
|
SFLS104805 |
DC36-76V |
10.0W |
5V 2A |
|
SFLS15481R2 |
DC36-76V |
6.24W |
1.2V 5.2A |
|
SFLS15481R5 |
DC36-76V |
7.8W |
1.5V 5.2A |
|
SFLS15481R8 |
DC36-76V |
8.1W |
1.8V 4.5A |
|
SFLS15482R5 |
DC36-76V |
11.25W |
2.5V 4.5A |
|
SFLS15483R3 |
DC36-76V |
14.85W |
3.3V 4.5A |
|
SFLS154805 |
DC36-76V |
15.0W |
5V 3A |
|
SFLS15485R2 |
DC36-76V |
15.6W |
5.2V 3A |
|
SFLS154812 |
DC36-76V |
15.0W |
12V 1.25A |
|
SFLS30481R2 |
DC36-76V |
14.4W |
1.2V 12A |
|
SFLS30481R5 |
DC36-76V |
16.5W |
1.5V 11A |
|
SFLS30481R8 |
DC36-76V |
19.8W |
1.8V 11A |
|
SFLS30482R5 |
DC36-76V |
25.0W |
2.5V 10A |
|
SFLS30483R3 |
DC36-76V |
29.7W |
3.3V 9A |
|
SFLS304805 |
DC36-76V |
30.0W |
5V 6A |
如需產品圖檔，請洽廣億科技服務人員，謝謝！
