• Small size and high efficiency non-isolated DC-DC converter.
• Footprint and external form is DOSA 3rd generation based.
• Wide input voltage.
• Wide adjustment output voltage range.
• Built-in remote ON/OFF, Power good, Start-up sequence, Frequency synchronization.
• Built-in overcurrent and thermal protection (auto recovery type) functions.

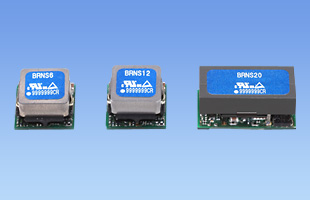

BRN(1) S(2) 20(3) - □(4)
(1) Series name
(2) Single output
(3) Output current
6: 6A
12: 12A
20: 20A
(4) Optional
R: Positive logic remote on/off
I: No clock output for frequency synchronization
Y1: Suitable control for external capacitor over 470 μF
|
型號 |
輸入電壓 |
輸出瓦數 |
輸出電壓／電流 |
|
BRNS6 |
DC 3.0 - 14.4V |
- |
DC 0.6 - 5.5V / 6.0A |
|
BRNS12 |
DC 3.0 - 14.4V |
- |
DC 0.6 - 5.5V / 12.0A |
|
BRNS20 |
DC 3.0 - 14.4V |
- |
DC 0.6 - 5.5V / 20.0A |
如需產品圖檔，請洽廣億科技服務人員，謝謝！
