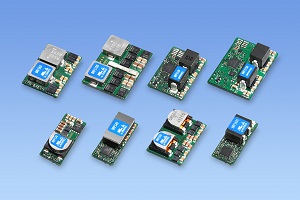

• Small size and high efficiency non-isolated DC-DC converter.
• Wide input voltage 4.5V to 14.0V.
• Fast transient respoce by Robust control.
• Built-in remote ON/OFF, Power good, Start-up sequence.
• Built-in overcurrent and thermal protection (auto recovery type) functions.

BRF⁽¹⁾  S⁽²⁾  50⁽³⁾  L⁽⁴⁾  -  □⁽⁵⁾

(1) Series name
(2) Single output
(3) Output current
　　　30: 30A
　　　40: 40A
　　　50: 50A
　　　60: 60A
　　100: 100A
　　120: 120A
　　150: 150A
(4) Type
　　　Blank: Standard type
　　　L: Low profile type (only 50A)
　　　S: Small type (only 60A)
(5) Optional
　　　R: Positive logic remote on/off
　　　I: POWERGOOD (only BRFS30/40/60S)
　　　　　*Other models has POWERGOOD function normally.
　　　P: Parallel operation (only BRFS40/60S)
　　　Y1: Fast transient response (only BRFS100)
　　　D : With switching frequency synchronization function (BRFS120 and BRFS150)
　　　L : High thermal dissipation (BRFS120 and BRFS150)
