• High efficiency 96% (CHS7004812H)

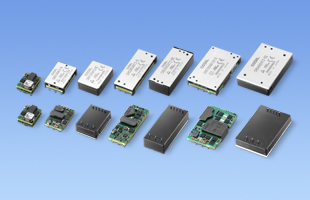

• Compact DC-DC Converter, "BRICK SIZE" which has been standard size for Telecommunication Market
• High density
• High reliability: not built-in aluminum and tantalum electrolytic capacitor
• Built-in overcurrent, overvoltage and thermal protection circuits
• Built-in remote ON/OFF
CH(1) S(2) 60(3) 48(4) 3R3(5) - □(6)
(1) Series name
(2) Single output
(3) Output power
(4) Input voltage
48: DC36 - 76V
(5) Output voltage
3R3: 3.3V
05: 5.0V
12: 12V
(6) Optional
R: with Remote ON/OFF Positive logic control
U: Shut down in protection circuit working
S: SMD
|
型號 |
輸入電壓 |
輸出瓦數 |
輸出電壓／電流 |
|
CHS60483R3 |
DC36-76V |
59.4W |
3.3V 18A |
|
CHS604805 |
DC36-76V |
60.0W |
5V 12A |
|
CHS604812 |
DC36-76V |
72.0W |
12V 6A |
|
CHS80483R3 |
DC36-76V |
82.5W |
3.3V 25A |
|
CHS804805 |
DC36-76V |
80.0W |
5V 16A |
|
CHS804812 |
DC36-76V |
90.0W |
12V 7.5A |
|
CHS1202405 |
DC18-36V/DC36-76V |
120.0W |
5V 24A |
|
CHS1202412 |
DC18-36V/DC36-76V |
120.0W |
12V 10A |
|
CHS1202415 |
DC18-36V/DC36-76V |
120.0W |
15V 8A |
|
CHS120483R3 |
DC18-36V/DC36-76V |
99.0W |
3.3V 30A |
|
CHS1204805 |
DC18-36V/DC36-76V |
120.0W |
5V 24A |
|
CHS1204812 |
DC18-36V/DC36-76V |
120.0W |
12V 10A |
|
CHS200483R3 |
DC36-76V |
165.0W |
3.3V 50A |
|
CHS2004805 |
DC36-76V |
200.0W |
5V 40A |
|
CHS2004812 |
DC36-76V |
192.0W |
12V 16A |
|
CHS3002405 |
DC18-36V/DC36-76V |
200.0W |
5V 40A |
|
CHS3002412 |
DC18-36V/DC36-76V |
200.4W |
12V 16.7A |
|
CHS3002415 |
DC18-36V/DC36-76V |
202.5W |
15V 13.5A |
|
CHS3004810 |
DC18-36V/DC36-76V |
300.0W |
10V 30A |
|
CHS3004812 |
DC18-36V/DC36-76V |
300.0W |
12V 25A |
|
CHS3004812H |
DC18-36V/DC36-76V |
300.0W |
12V 25A |
|
CHS3804810 |
DC36-76V |
380.0W |
10V 38A |
|
CHS3804812 |
DC36-76V |
384.0W |
12V 32A |
|
CHS3804812H |
DC36-76V |
384.0W |
12V 32A |
|
CHS4002412 |
DC18-36V/DC36-76V |
318.0W |
12V 26.5A |
|
CHS4002415 |
DC18-36V/DC36-76V |
397.5W |
15V 26.5A |
|
CHS4002424 |
DC18-36V/DC36-76V |
348.0W |
24V 14.5A |
|
CHS4002428 |
DC18-36V/DC36-76V |
350.0W |
28V 12.5A |
|
CHS4002432 |
DC18-36V/DC36-76V |
352.0W |
32V 11A |
|
CHS4002448 |
DC18-36V/DC36-76V |
302.4W |
48V 6.3A |
|
CHS4004810 |
DC18-36V/DC36-76V |
400.0W |
10V 40A |
|
CHS4004812 |
DC18-36V/DC36-76V |
396.0W |
12V 33A |
|
CHS4004812H |
DC18-36V/DC36-76V |
396.0W |
12V 33A |
|
CHS5004812 |
DC36-76V |
504.0W |
12V 42A |
|
CHS7004812H |
DC36-76V |
702.0W |
12V 58.5A |
