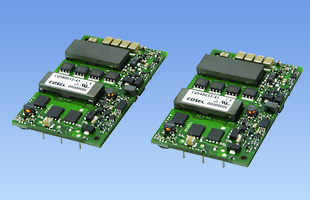

• Compact DC-DC Converter, "BRICK SIZE" which has been standard size for Telecommunication Market
• High efficiency
• High density
• High reliability: not built-in aluminum and tantalum electrolytic capacitor
• Built-in overcurrent, overvoltage and thermal protection circuits
• Built-in remote ON/OFF
CQ(1) S(2) 48(3) 018(4) - 50(5) - □(6)
(1) Series name
(2) Single output
(3) Input voltage
24: DC18 - 36V
48: DC36 - 76V
(4) Output voltage
015: 1.5V
018: 1.8V
025: 2.5V
033: 3.3V
050: 5V
120: 12V
150: 15V
(5) Output current
(6) Optional
R: with Remote ON/OFF
Positive logic control
V: Output voltage setting ±1%
N: Auto restart from thermal protection
|
型號 |
輸入電壓 |
輸出瓦數 |
輸出電壓／電流 |
|
CQS24033-40 |
DC18-36V/DC36-76V |
132.0W |
3.3V 40.0A |
|
CQS24050-28 |
DC18-36V/DC36-76V |
140.0W |
5V 28A |
|
CQS24120-12 |
DC18-36V/DC36-76V |
144.0W |
12V 12A |
|
CQS24150-8 |
DC18-36V/DC36-76V |
120.0W |
15V 8A |
|
CQS48015-50 |
DC18-36V/DC36-76V |
75.0W |
1.5V 50A |
|
CQS48018-50 |
DC18-36V/DC36-76V |
90.0W |
1.8V 50A |
|
CQS48025-45 |
DC18-36V/DC36-76V |
112.5W |
2.5V 45A |
|
CQS48033-45 |
DC18-36V/DC36-76V |
148.5W |
3.3V 45A |
|
CQS48050-28 |
DC18-36V/DC36-76V |
140.0W |
5V 28A |
|
CQS48120-14 |
DC18-36V/DC36-76V |
168.0W |
12V 14A |
|
CQS48150-8 |
DC18-36V/DC36-76V |
120.0W |
15V 8A |
如需產品圖檔，請洽廣億科技服務人員，謝謝！
