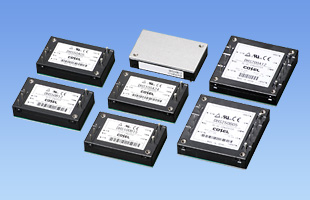

• Compact DC-DC Converter, "BRICK SIZE" which has been standard size for Telecommunication Market
• High efficiency
• High density
• High reliability: not built-in aluminum and tantalum electrolytic capacitor
• Built-in overcurrent, overvoltage and thermal protection circuits
• Built-in remote ON/OFF
DH(1) S(2) 100(3) A(4) 05(5) - □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) A: DC60 - 160V
(5) Output voltage
(6) Optional
T: with Mounting hole
(φ3.4 thru)
|
型號 |
輸入電壓 |
輸出瓦數 |
輸出電壓／電流 |
|
DHS50A05 |
DC60-160V |
50.0W |
5V 10A |
|
DHS50A12 |
DC60-160V |
50.4W |
12V 4.2A |
|
DHS50A15 |
DC60-160V |
51.0W |
15V 3.4A |
|
DHS50A24 |
DC60-160V |
50.4W |
24V 2.1A |
|
DHS100A05 |
DC60-160V |
100.0W |
5V 20A |
|
DHS100A12 |
DC60-160V |
100.8W |
12V 8.4A |
|
DHS100A15 |
DC60-160V |
100.5W |
15V 6.7A |
|
DHS100A24 |
DC60-160V |
100.8W |
24V 4.2A |
|
DHS200A05 |
DC60-160V |
200.0W |
5V 40A |
|
DHS200A12 |
DC60-160V |
200.4W |
12V 16.7A |
|
DHS200A15 |
DC60-160V |
201.0W |
15V 13.4A |
|
DHS200A24 |
DC60-160V |
201.6W |
24V 8.4A |
|
DHS50B03 |
DC200-400V |
33.0W |
3.3V 10A |
|
DHS50B05 |
DC200-400V |
50.0W |
5V 10A |
|
DHS50B12 |
DC200-400V |
50.4W |
12V 4.2A |
|
DHS50B15 |
DC200-400V |
51.0W |
15V 3.4A |
|
DHS50B24 |
DC200-400V |
50.4W |
24V 2.1A |
|
DHS50B28 |
DC200-400V |
50.4W |
28V 1.8A |
|
DHS100B03 |
DC200-400V |
66.0W |
3.3V 20A |
|
DHS100B05 |
DC200-400V |
100.0W |
5V 20A |
|
DHS100B12 |
DC200-400V |
100.8W |
12V 8.4A |
|
DHS100B15 |
DC200-400V |
100.5W |
15V 6.7A |
|
DHS100B24 |
DC200-400V |
100.8W |
24V 4.2A |
|
DHS100B28 |
DC200-400V |
100.8W |
28V 3.6A |
|
DHS250B03 |
DC200-400V |
165.0W |
3.3V 50A |
|
DHS250B05 |
DC200-400V |
250.0W |
5V 50A |
|
DHS250B07 |
DC200-400V |
247.5W |
7.5V 33A |
|
DHS250B12 |
DC200-400V |
252.0W |
12V 21A |
|
DHS250B15 |
DC200-400V |
247.5W |
15V 16.5A |
|
DHS250B24 |
DC200-400V |
252.0W |
24V 10.5A |
|
DHS250B28 |
DC200-400V |
252.0W |
28V 9.0A |
|
DHS250B48 |
DC200-400V |
249.6W |
48V 5.2A |
如需產品圖檔，請洽廣億科技服務人員，謝謝！
