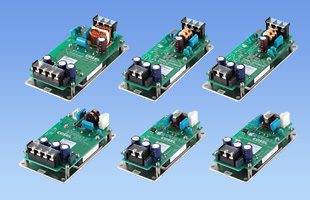

• Compact DC-DC Converter, SNDHS series includes DHS
series
• High efficiency
• Built-in overcurrent, overvoltage and thermal protection circuits
• Built-in remote ON/OFF (secondary is an optional)
• Conduction cooling (e.g. heat radiation from the aluminum
base plate to the attached heat sink)
• AC-DC Converter can be constituted in combination with
SNDPG series (only SNDHS50B/SNDHS100B/SNDHS250B)
SNDH(1) S(2) 100(3) A(4) 05(5) - □(6)
(1) Series name
(2) Single output
(3) Output wattage
(4) A: DC60V - 160V
(5) Output voltage
(6) Optional
C: with Coating
R: with Remote ON/OFF
Please refer to Instruction manual 7.
|
型號 |
輸入電壓 |
輸出瓦數 |
輸出電壓／電流 |
|
SNDHS50A05 |
DC60-160V |
50.0W |
5V 10A |
|
SNDHS50A12 |
DC60-160V |
50.4W |
12V 4.2A |
|
SNDHS50A15 |
DC60-160V |
51.0W |
15V 3.4A |
|
SNDHS50A24 |
DC60-160V |
50.4W |
24V 2.1A |
|
SNDHS100A05 |
DC60-160V |
100.0W |
5V 20A |
|
SNDHS100A12 |
DC60-160V |
100.8W |
12V 8.4A |
|
SNDHS100A15 |
DC60-160V |
100.5W |
15V 6.7A |
|
SNDHS100A24 |
DC60-160V |
100.8W |
24V 4.2A |
|
SNDHS200A05 |
DC60-160V |
200.0W |
5V 40A |
|
SNDHS200A12 |
DC60-160V |
200.4W |
12V 16.7A |
|
SNDHS200A15 |
DC60-160V |
201.0W |
15V 13.4A |
|
SNDHS200A24 |
DC60-160V |
201.6W |
24V 8.4A |
|
SNDHS50B03 |
DC200-400V |
33.0W |
3.3V 10A |
|
SNDHS50B05 |
DC200-400V |
50.0W |
5V 10A |
|
SNDHS50B12 |
DC200-400V |
50.4W |
12V 4.2A |
|
SNDHS50B15 |
DC200-400V |
51.0W |
15V 3.4A |
|
SNDHS50B24 |
DC200-400V |
50.4W |
24V 2.1A |
|
SNDHS50B28 |
DC200-400V |
50.4W |
28V 1.8A |
|
SNDHS100B03 |
DC200-400V |
66.0W |
3.3V 20A |
|
SNDHS100B05 |
DC200-400V |
100.0W |
5V 20A |
|
SNDHS100B12 |
DC200-400V |
100.8W |
12V 8.4A |
|
SNDHS100B15 |
DC200-400V |
100.5W |
15V 6.7A |
|
SNDHS100B24 |
DC200-400V |
100.8W |
24V 4.2A |
|
SNDHS100B28 |
DC200-400V |
100.8W |
28V 3.6A |
|
SNDHS250B03 |
DC200-400V |
165.0W |
3.3V 50A |
|
SNDHS250B05 |
DC200-400V |
250.0W |
5V 50A |
|
SNDHS250B07 |
DC200-400V |
247.5W |
7.5V 33A |
|
SNDHS250B12 |
DC200-400V |
252.0W |
12V 21A |
|
SNDHS250B15 |
DC200-400V |
247.5W |
15V 16.5A |
|
SNDHS250B24 |
DC200-400V |
252.0W |
24V 10.5A |
|
SNDHS250B28 |
DC200-400V |
252.0W |
28V 9.0A |
|
SNDHS250B48 |
DC200-400V |
249.6W |
48V 5.2A |
