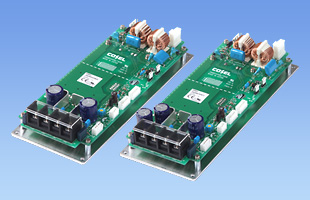

• Compact DC-DC converter, SNDBS series includes DBS series
• Conduction cooling is possible by the combination with SNDPF and SNDPG series
• Built-in overcurrent, overvoltage and thermal protection circuits
• Built-in remote ON/OFF
• Inverter operating monitoring (IOG)
• Parallel operation
SNDB(1) S(2) 400(3) B(4) 03(5)
(1) Series name
(2) Single output
(3) Output wattage
(4) B: DC200V - 400V
(5) Output voltage
|
型號 |
輸入電壓 |
輸出瓦數 |
輸出電壓／電流 |
|
SNDBS400B03 |
DC200-400V |
264W |
3.3V 80A |
|
SNDBS400B05 |
DC200-400V |
400W |
5V 80A |
|
SNDBS400B07 |
DC200-400V |
405W |
7.5V 54A |
|
SNDBS400B12 |
DC200-400V |
408W |
12V 34A |
|
SNDBS400B15 |
DC200-400V |
405W |
15V 27A |
|
SNDBS400B18 |
DC200-400V |
396W |
18V 22A |
|
SNDBS400B24 |
DC200-400V |
408W |
24V 17A |
|
SNDBS400B28 |
DC200-400V |
406W |
28V 14.5A |
|
SNDBS700B12 |
DC200-400V |
696W |
12V 58A |
|
SNDBS700B24 |
DC200-400V |
696W |
24V 29A |
|
SNDBS700B28 |
DC200-400V |
700W |
28V 25A |
|
SNDBS700B36 |
DC200-400V |
702W |
36V 19.5A |
|
SNDBS700B48 |
DC200-400V |
696W |
48V 14.5A |
如需產品圖檔，請洽廣億科技服務人員，謝謝！
