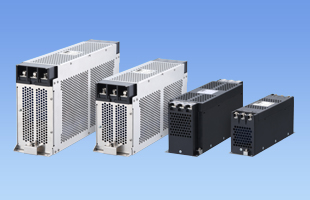

10-150A
Improve saturation resistance
Space-saving type
Maximum input voltage 528VAC: 10% fluctuations in voltage 480VAC
Selectable leakage current value
10-30A
Push down type terminal block
FSB(1) - 30(2) - 324(3) - □(4)
(1) Model Name
(2) Rated Current
(3) Line to ground capacitor code
Refer to Product Line-up.
* When the line to ground capacitor code is different, the attenuation characteristic is
different.
(4) Option
H:Ultra high attenuation type
U:Improve differential mode attenuation (Rated voltage 250V) Only 573, 254,
335 is applied.
|
型號 |
漏電流 |
コンデンサ容量（公称値） |
額定電壓 |
額定電流 |
|
FSB-10-203 |
1.0mA / 2.0mA max |
CY1:0.01μF, CY2:0.01μF |
三相三線式 500V 50/60Hz |
10A |
|
0.1mA / 0.2mA max |
||||
|
FSB-10-693 |
2.5 mA / 5.0mA max |
CY1:0.022μF, CY2:0.047μF |
三相三線式 500V 50/60Hz |
10A |
|
0.35mA / 0.7mA max |
||||
|
FSB-10-104 |
3.5mA / 7.0mA max |
CY1:0.033μF, CY2:0.068μF |
三相三線式 500V 50/60Hz |
10A |
|
0.5mA / 1.0mA max |
||||
|
FSB-10-324 |
12 mA / 24 mA max |
CY1:0.1μF, CY2:0.22μF |
三相三線式 500V 50/60Hz |
10A |
|
1.5mA / 3.0mA max |
||||
|
FSB-10-355 |
180mA / 270mA max |
CY1:0.22μF, CY2:3.3μF |
三相三線式 500V 50/60Hz |
10A |
|
25 mA / 50 mA max |
||||
|
FSB-20-203 |
1.0mA / 2.0mA max |
CY1:0.01μF, CY2:0.01μF |
三相三線式 500V 50/60Hz |
20A |
|
0.1mA / 0.2mA max |
||||
|
FSB-20-693 |
2.5 mA / 5.0mA max |
CY1:0.022μF, CY2:0.047μF |
三相三線式 500V 50/60Hz |
20A |
|
0.35mA / 0.7mA max |
||||
|
FSB-20-104 |
3.5mA / 7.0mA max |
CY1:0.033μF, CY2:0.068μF |
三相三線式 500V 50/60Hz |
20A |
|
0.5mA / 1.0mA max |
||||
|
FSB-20-324 |
12 mA / 24 mA max |
CY1:0.1μF, CY2:0.22μF |
三相三線式 500V 50/60Hz |
20A |
|
1.5mA / 3.0mA max |
||||
|
FSB-20-355 |
180mA / 270mA max |
CY1:0.22μF, CY2:3.3μF |
三相三線式 500V 50/60Hz |
20A |
|
25 mA / 50 mA max |
||||
|
FSB-30-203 |
1.0mA / 2.0mA max |
CY1:0.01μF, CY2:0.01μF |
三相三線式 500V 50/60Hz |
30A |
|
0.1mA / 0.2mA max |
||||
|
FSB-30-693 |
2.5 mA / 5.0mA max |
CY1:0.022μF, CY2:0.047μF |
三相三線式 500V 50/60Hz |
30A |
|
0.35mA / 0.7mA max |
||||
|
FSB-30-104 |
3.5mA / 7.0mA max |
CY1:0.033μF, CY2:0.068μF |
三相三線式 500V 50/60Hz |
30A |
|
0.5mA / 1.0mA max |
||||
|
FSB-30-324 |
12 mA / 24 mA max |
CY1:0.1μF, CY2:0.22μF |
三相三線式 500V 50/60Hz |
30A |
|
1.5mA / 3.0mA max |
||||
|
FSB-30-355 |
180mA / 270mA max |
CY1:0.22μF, CY2:3.3μF |
三相三線式 500V 50/60Hz |
30A |
|
25 mA / 50 mA max |
||||
|
FSB-40-203 |
1.0mA / 2.0mA max |
CY1:0.01μF, CY2:0.01μF |
三相三線式 500V 50/60Hz |
40A |
|
0.1mA / 0.2mA max |
||||
|
FSB-40-693 |
2.5 mA / 5.0mA max |
CY1:0.022μF, CY2:0.047μF |
三相三線式 500V 50/60Hz |
40A |
|
0.35mA / 0.7mA max |
||||
|
FSB-40-104 |
3.5mA / 7.0mA max |
CY1:0.033μF, CY2:0.068μF |
三相三線式 500V 50/60Hz |
40A |
|
0.5mA / 1.0mA max |
||||
|
FSB-40-324 |
12 mA / 24 mA max |
CY1:0.1μF, CY2:0.22μF |
三相三線式 500V 50/60Hz |
40A |
|
1.5mA / 3.0mA max |
||||
|
FSB-40-355 |
180mA / 270mA max |
CY1:0.22μF, CY2:3.3μF |
三相三線式 500V 50/60Hz |
40A |
|
25 mA / 50 mA max |
||||
|
FSB-50-203 |
1.0mA / 2.0mA max |
CY1:0.01μF, CY2:0.01μF |
三相三線式 500V 50/60Hz |
50A |
|
0.1mA / 0.2mA max |
||||
|
FSB-50-693 |
2.5 mA / 5.0mA max |
CY1:0.022μF, CY2:0.047μF |
三相三線式 500V 50/60Hz |
50A |
|
0.35mA / 0.7mA max |
||||
|
FSB-50-104 |
3.5mA / 7.0mA max |
CY1:0.033μF, CY2:0.068μF |
三相三線式 500V 50/60Hz |
50A |
|
0.5mA / 1.0mA max |
||||
|
FSB-50-324 |
12 mA / 24 mA max |
CY1:0.1μF, CY2:0.22μF |
三相三線式 500V 50/60Hz |
50A |
|
1.5mA / 3.0mA max |
||||
|
FSB-50-355 |
180mA / 270mA max |
CY1:0.22μF, CY2:3.3μF |
三相三線式 500V 50/60Hz |
50A |
|
25 mA / 50 mA max |
||||
|
FSB-60-203 |
1.0mA / 2.0mA max |
CY1:0.01μF, CY2:0.01μF |
三相三線式 500V 50/60Hz |
60A |
|
0.1mA / 0.2mA max |
||||
|
FSB-60-693 |
2.5 mA / 5.0mA max |
CY1:0.022μF, CY2:0.047μF |
三相三線式 500V 50/60Hz |
60A |
|
0.35mA / 0.7mA max |
||||
|
FSB-60-104 |
3.5mA / 7.0mA max |
CY1:0.033μF, CY2:0.068μF |
三相三線式 500V 50/60Hz |
60A |
|
0.5mA / 1.0mA max |
||||
|
FSB-60-324 |
12 mA / 24 mA max |
CY1:0.1μF, CY2:0.22μF |
三相三線式 500V 50/60Hz |
60A |
|
1.5mA / 3.0mA max |
||||
|
FSB-60-355 |
180mA / 270mA max |
CY1:0.22μF, CY2:3.3μF |
三相三線式 500V 50/60Hz |
60A |
|
25 mA / 50 mA max |
||||
|
FSB-80-203 |
1.0mA / 2.0mA max |
CY1:0.01μF, CY2:0.01μF |
三相三線式 500V 50/60Hz |
80A |
|
0.1mA / 0.2mA max |
||||
|
FSB-80-693 |
2.5 mA / 5.0mA max |
CY1:0.022μF, CY2:0.047μF |
三相三線式 500V 50/60Hz |
80A |
|
0.35mA / 0.7mA max |
||||
|
FSB-80-104 |
3.5mA / 7.0mA max |
CY1:0.033μF, CY2:0.068μF |
三相三線式 500V 50/60Hz |
80A |
|
0.5mA / 1.0mA max |
||||
|
FSB-80-324 |
12 mA / 24 mA max |
CY1:0.1μF, CY2:0.22μF |
三相三線式 500V 50/60Hz |
80A |
|
1.5mA / 3.0mA max |
||||
|
FSB-80-355 |
330mA / 515mA max |
CY1:0.22μF, CY2:3.3μF |
三相三線式 500V 50/60Hz |
80A |
|
40mA / 80mA max |
||||
|
FSB-100-203 |
1.0mA / 2.0mA max |
CY1:0.01μF, CY2:0.01μF |
三相三線式 500V 50/60Hz |
100A |
|
0.1mA / 0.2mA max |
||||
|
FSB-100-693 |
2.5 mA / 5.0mA max |
CY1:0.022μF, CY2:0.047μF |
三相三線式 500V 50/60Hz |
100A |
|
0.35mA / 0.7mA max |
||||
|
FSB-100-104 |
3.5mA / 7.0mA max |
CY1:0.033μF, CY2:0.068μF |
三相三線式 500V 50/60Hz |
100A |
|
0.5mA / 1.0mA max |
||||
|
FSB-100-324 |
12 mA / 24 mA max |
CY1:0.1μF, CY2:0.22μF |
三相三線式 500V 50/60Hz |
100A |
|
1.5mA / 3.0mA max |
||||
|
FSB-100-355 |
330mA / 515mA max |
CY1:0.22μF, CY2:3.3μF |
三相三線式 500V 50/60Hz |
100A |
|
40mA / 80mA max |
||||
|
FSB-150-203 |
1.0mA / 2.0mA max |
CY1:0.01μF, CY2:0.01μF |
三相三線式 500V 50/60Hz |
150A |
|
0.1mA / 0.2mA max |
||||
|
FSB-150-693 |
2.5 mA / 5.0mA max |
CY1:0.022μF, CY2:0.047μF |
三相三線式 500V 50/60Hz |
150A |
|
0.35mA / 0.7mA max |
||||
|
FSB-150-104 |
3.5mA / 7.0mA max |
CY1:0.033μF, CY2:0.068μF |
三相三線式 500V 50/60Hz |
150A |
|
0.5mA / 1.0mA max |
||||
|
FSB-150-324 |
12 mA / 24 mA max |
CY1:0.1μF, CY2:0.22μF |
三相三線式 500V 50/60Hz |
150A |
|
1.5mA / 3.0mA max |
||||
|
FSB-150-355 |
330mA / 515mA max |
CY1:0.22μF, CY2:3.3μF |
三相三線式 500V 50/60Hz |
150A |
|
40mA / 80mA max |
如需產品圖檔，請洽廣億科技服務人員，謝謝！
