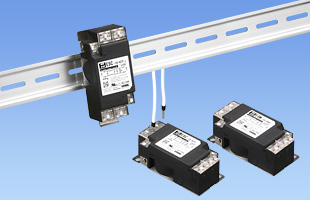

Small-size
Torque management is unnecessary with screwless
ESC(1) - 03(2) - 472(3) - □(4)
(1) Model Name
(2) Rated Current
(3) Line to ground capacitor code
Refer to Product Line-up.
* When the line to ground capacitor code is different, the attenuation characteristic is
different.
(4) Options
D:DIN rail installation type
* The dimensions change when the option is set. Refer to External view.
|
型號 |
漏電流 |
コンデンサ容量（公称値） |
額定電壓 |
額定電流 |
|
ESC-03-681 |
75.5μA / 150μA max |
680pF |
AC 1Φ 250V / DC250V |
3A |
|
ESC-03-102 |
0.13mA / 0.25mA max |
1000pF |
AC 1Φ 250V / DC250V |
3A |
|
ESC-03-222 |
0.25mA / 0.5mA max |
2200pF |
AC 1Φ 250V / DC250V |
3A |
|
ESC-03-332 |
0.38mA / 0.75mA max |
3300pF |
AC 1Φ 250V / DC250V |
3A |
|
ESC-03-472 |
0.5mA / 1.0mA max |
4700pF |
AC 1Φ 250V / DC250V |
3A |
|
ESC-06-681 |
75.5μA / 150μA max |
680pF |
AC 1Φ 250V / DC250V |
6A |
|
ESC-06-102 |
0.13mA / 0.25mA max |
1000pF |
AC 1Φ 250V / DC250V |
6A |
|
ESC-06-222 |
0.25mA / 0.5mA max |
2200pF |
AC 1Φ 250V / DC250V |
6A |
|
ESC-06-332 |
0.38mA / 0.75mA max |
3300pF |
AC 1Φ 250V / DC250V |
6A |
|
ESC-06-472 |
0.5mA / 1.0mA max |
4700pF |
AC 1Φ 250V / DC250V |
6A |
|
ESC-10-681 |
75.5μA / 150μA max |
680pF |
AC 1Φ 250V / DC250V |
10A |
|
ESC-10-102 |
0.13mA / 0.25mA max |
1000pF |
AC 1Φ 250V / DC250V |
10A |
|
ESC-10-222 |
0.25mA / 0.5mA max |
2200pF |
AC 1Φ 250V / DC250V |
10A |
|
ESC-10-332 |
0.38mA / 0.75mA max |
3300pF |
AC 1Φ 250V / DC250V |
10A |
|
ESC-10-472 |
0.5mA / 1.0mA max |
4700pF |
AC 1Φ 250V / DC250V |
10A |
|
ESC-16-681 |
75.5μA / 150μA max |
680pF |
AC 1Φ 250V / DC250V |
16A |
|
ESC-16-102 |
0.13mA / 0.25mA max |
1000pF |
AC 1Φ 250V / DC250V |
16A |
|
ESC-16-222 |
0.25mA / 0.5mA max |
2200pF |
AC 1Φ 250V / DC250V |
16A |
|
ESC-16-332 |
0.38mA / 0.75mA max |
3300pF |
AC 1Φ 250V / DC250V |
16A |
|
ESC-16-472 |
0.5mA / 1.0mA max |
4700pF |
AC 1Φ 250V / DC250V |
16A |
如需產品圖檔，請洽廣億科技服務人員，謝謝！
