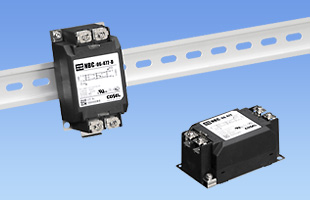

Installation compatible with NAC series
Push down type terminal block
NBC(1) - 06(2) - 472(3) - □(4)
(1) Model Name
(2) Rated Current
(3) Line to ground capacitor code
Refer to Product Line-up.
* When the line to ground capacitor code is different, the attenuation characteristic is
different.
(4) Options
D:DIN rail installation type
* The dimensions change when the option is set. Refer to External view.
|
型號 |
漏電流 |
コンデンサ容量（公称値） |
額定電壓 |
額定電流 |
|
NBC-06-681 |
75.5uA / 150uA max |
680pF |
AC 1Φ 250V / DC250V |
6A |
|
NBC-06-102 |
0.13mA / 0.25mA max |
1000pF |
AC 1Φ 250V / DC250V |
6A |
|
NBC-06-222 |
0.25mA / 0.5mA max |
2200pF |
AC 1Φ 250V / DC250V |
6A |
|
NBC-06-332 |
0.38mA / 0.75mA max |
3300pF |
AC 1Φ 250V / DC250V |
6A |
|
NBC-06-472 |
0.5mA / 1.0mA max |
4700pF |
AC 1Φ 250V / DC250V |
6A |
|
NBC-10-681 |
75.5uA / 150uA max |
680pF |
AC 1Φ 250V / DC250V |
10A |
|
NBC-10-102 |
0.13mA / 0.25mA max |
1000pF |
AC 1Φ 250V / DC250V |
10A |
|
NBC-10-222 |
0.25mA / 0.5mA max |
2200pF |
AC 1Φ 250V / DC250V |
10A |
|
NBC-10-332 |
0.38mA / 0.75mA max |
3300pF |
AC 1Φ 250V / DC250V |
10A |
|
NBC-10-472 |
0.5mA / 1.0mA max |
4700pF |
AC 1Φ 250V / DC250V |
10A |
|
NBC-16-681 |
75.5uA / 150uA max |
680pF |
AC 1Φ 250V / DC250V |
16A |
|
NBC-16-102 |
0.13mA / 0.25mA max |
1000pF |
AC 1Φ 250V / DC250V |
16A |
|
NBC-16-222 |
0.25mA / 0.5mA max |
2200pF |
AC 1Φ 250V / DC250V |
16A |
|
NBC-16-332 |
0.38mA / 0.75mA max |
3300pF |
AC 1Φ 250V / DC250V |
16A |
|
NBC-16-472 |
0.5mA / 1.0mA max |
4700pF |
AC 1Φ 250V / DC250V |
16A |
|
NBC-20-681 |
75.5uA / 150uA max |
680pF |
AC 1Φ 250V / DC250V |
20A |
|
NBC-20-102 |
0.13mA / 0.25mA max |
1000pF |
AC 1Φ 250V / DC250V |
20A |
|
NBC-20-222 |
0.25mA / 0.5mA max |
2200pF |
AC 1Φ 250V / DC250V |
20A |
|
NBC-20-332 |
0.38mA / 0.75mA max |
3300pF |
AC 1Φ 250V / DC250V |
20A |
|
NBC-20-472 |
0.5mA / 1.0mA max |
4700pF |
AC 1Φ 250V / DC250V |
20A |
|
NBC-30-681 |
75.5uA / 150uA max |
680pF |
AC 1Φ 250V / DC250V |
30A |
|
NBC-30-102 |
0.13mA / 0.25mA max |
1000pF |
AC 1Φ 250V / DC250V |
30A |
|
NBC-30-222 |
0.25mA / 0.5mA max |
2200pF |
AC 1Φ 250V / DC250V |
30A |
|
NBC-30-332 |
0.38mA / 0.75mA max |
3300pF |
AC 1Φ 250V / DC250V |
30A |
|
NBC-30-472 |
0.5mA / 1.0mA max |
4700pF |
AC 1Φ 250V / DC250V |
30A |
