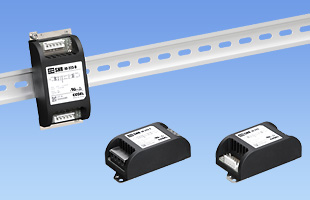

Ripple noise attenuation type for switch mode power supplies (DC)
Best filter for switch mode power supplies of analog circuit
SNR(1) - 10(2) - 223(3) - □(4)
(1) Model Name
(2) Rated Current
(3) Line to ground capacitor code
Refer to Product Line-up.
* When the line to ground capacitor code is different, the attenuation characteristic is
different.
(4) Options
D:DIN rail installation type
T:Terminal block type
DT:Terminal block and DIN rail type
*The dimensions change when the option is set. Refer to External view.
|
型號 |
漏電流 |
コンデンサ容量（公称値） |
額定電壓 |
額定電流 |
|
SNR-10-000 |
- |
なし |
DC50V |
10A |
|
SNR-10-223 |
- |
22000ｐF |
DC50V |
10A |
