THK PRECISION
微小力感測器

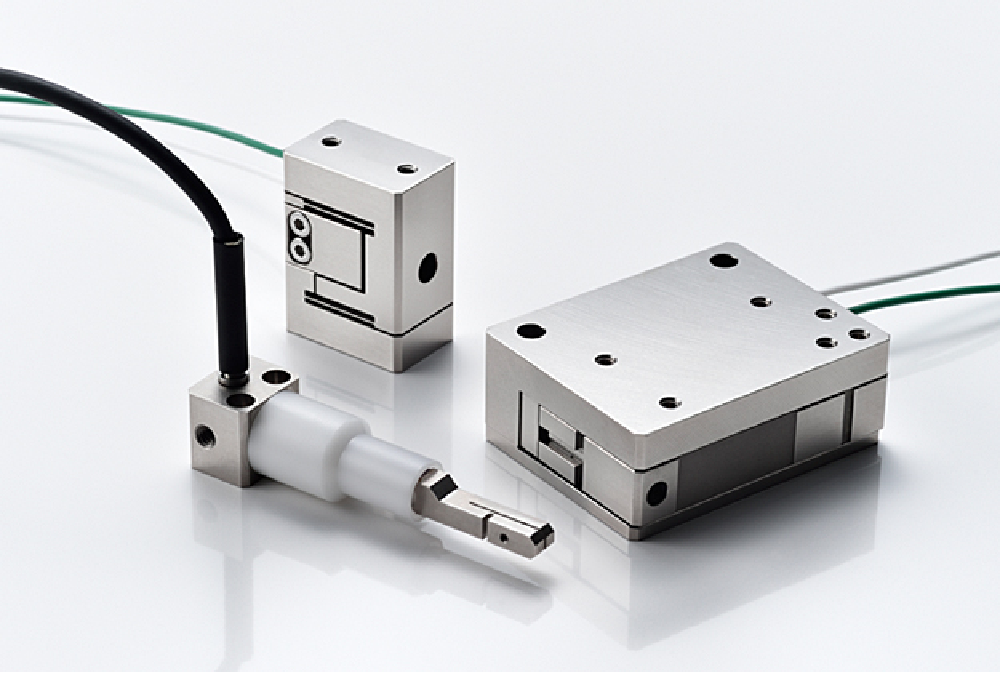

FS1M、FSCU 系列
Capable of detecting and measuring a minute force at a μN (mgf) level with high sensitivity. Being lightweight and compact, this sensor is optimal for research and development and installation into equipment. Supports customization such as a change of the shape or the sensitivity.
- 能夠以高靈敏度檢測和測量μN（mgf）級的微小力。
- 感測器重量輕、結構緊湊，易於操作，非常適合研發和組裝到設備中。
- 支援外觀、靈敏度變更…等客製化定製。
- Capable of detecting and measuring a minute force at a μN (mgf) level with high sensitivity.
- Being lightweight and compact, this sensor is optimal for research and development and installation into equipment.
- Supports customization such as a change of the shape or the sensitivity.
Applications
|
 |
FS1M-1N - 微小力感應器Demo
➤ Force sensor高穩定量測的力感測器，提供專屬客製化服務
➤ 高精度荷重元，滿足各種微小力需求的Force Sensor
➤ LoadCell新選擇-微小力應力感測器
|
型號 |
類型 |
測量範圍 |
解析度 |
線性度 |
剛性 |
外型尺寸 |
|
FS1M-0.1NP |
壓力測定 |
0 ～ 100mN （≒10gf） |
20μN （≒0.002gf） |
±1％ |
343 |
40×52×20 |
|
FS1M-0.1NT |
拉力測定 |
0 ～ 100mN （≒10gf） |
20μN （≒0.002gf） |
±1％ |
343 |
40×52×20 |
|
FS1M-0.1NB |
壓力/拉力測定 |
±50mN （≒±5gf） |
20μN （≒0.002gf） |
±1％ |
343 |
40×52×20 |
|
FS1M-1NP |
壓力測定 |
0 ～ 1N （≒100gf） |
0.1mN （≒0.01gf） |
±1％ |
50 |
34×25×16 |
|
FS1M-1NT |
拉力測定 |
0 ～ 1N （≒100gf） |
0.1mN （≒0.01gf） |
±1％ |
50 |
34×25×16 |
|
FS1M-1NB |
壓力/拉力測定 |
±0.5N （≒±50gf） |
0.1mN （≒0.01gf） |
±1％ |
50 |
34×25×16 |
|
FS1M-5NP |
壓力測定 |
0 ～ 5N （≒500gf） |
0.5mN （≒0.05gf） |
±1％ |
9.9 |
34×25×16 |
|
FS1M-5NT |
拉力測定 |
0 ～ 5N （≒500gf） |
0.5mN （≒0.05gf） |
±1％ |
9.9 |
34×25×16 |
|
FS1M-5NB |
壓力/拉力測定 |
±2.5N （≒±250gf） |
0.5mN （≒0.05gf） |
±1％ |
9.9 |
34×25×16 |
|
FSCU1-0.1N-S |
手臂形式 |
0 ～ 100mN （≒±10gf） |
50μN （≒0.005gf） |
±1％ |
96.9 |
15×14×64 |
* 解析度為產品保證可觀察之最小值
如需產品圖檔，請洽廣億科技服務人員，謝謝！
